PT481

PHOTO TRANS BLUE LEN 800NM SIDE

product image

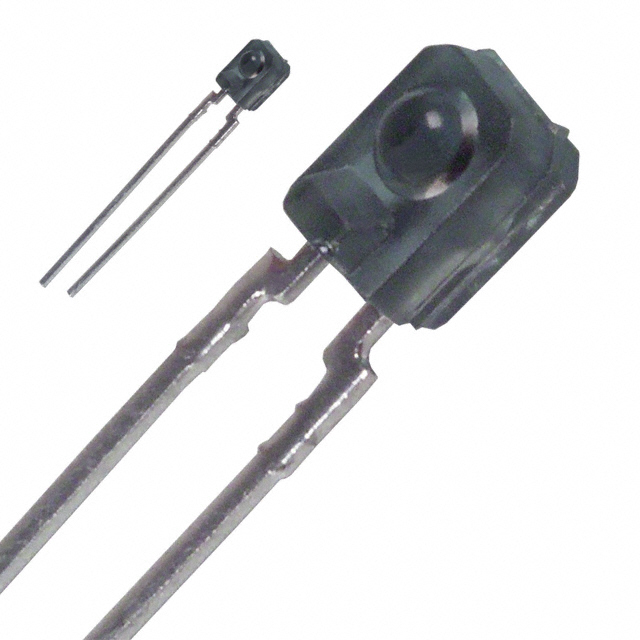

PT481 Picture
See larger image
SeekIC No. : 004137328 Detail

PT481: PHOTO TRANS BLUE LEN 800NM SIDE

PT481 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT481
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: * Manufacturer: Sharp Microelectronics
Voltage - Collector Emitter Breakdown (Max): 35V Current - Collector (Ic) (Max): 50mA
Current - Dark (Id) (Max): 1mA Wavelength: 800nm
Package / Case : SOIC-32 Wide Viewing Angle: 70°
Power - Max: 75mW Mounting Type: Through Hole
Orientation: Side View

Description

Series: *
Current - Collector (Ic) (Max): 50mA
Mounting Type: Through Hole
Orientation: Side View
Wavelength: 800nm
Power - Max: 75mW
Viewing Angle: 70°
Package / Case: Radial
Voltage - Collector Emitter Breakdown (Max): 35V
Manufacturer: Sharp Microelectronics
Current - Dark (Id) (Max): 1mA


Features:

` Epoxy resin package
` Narrow acceptance ( : Typ. ± 13° )
` High sensitivity( IC : MIN. 1.5mA at E e = 0.1mW/cm 2 ) :PT481/PT483F1( IC : MIN. 0.9mA at E e = 0.1mW/cm 2 ) :PT481F
` Visible light cut-off type :PT481F/PT483F1
` Long lead pin type : PT483F1


Application

· VCRs, cassette tape recorders
· Floppy disk drives
· Optoelectronic switches
· Automatic stroboscopes


Specifications

Parameter Symbol Rating Unit
Collector-emitter voltage VCEO 35 V
Emitter-collector voltage VECO 6 V
Collector current IC 50 mA
Collector power dissipation PC 75 mW
Operating temperature T opr - 25 to + 85
Storage temperature T stg - 40 to + 85
*1Soldering temperature T sol 260
*1 For 3 seconds at the position of 1.4mm from thebottom face of resin package
