PT4200

Features: • Wide Input Voltage Range: 38V to 72V• 83% Efficiency• 1,500 VDC Isolation• 18 Pin DIP Package• 3.5 Million Hour MTBF• Meets FCC/EN55022 Class A• UL and CSA approved• No External Components Required• Adjustable Output VoltagePinoutDe...

product image

PT4200 Picture
See larger image
SeekIC No. : 004466335 Detail

PT4200: Features: • Wide Input Voltage Range: 38V to 72V• 83% Efficiency• 1,500 VDC Isolation• 18 Pin DIP Package• 3.5 Million Hour MTBF• Meets FCC/EN55022 Class A•...

PT4200 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT4200
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide Input Voltage Range: 38V to 72V
• 83% Efficiency
• 1,500 VDC Isolation
• 18 Pin DIP Package
• 3.5 Million Hour MTBF
• Meets FCC/EN55022 Class A
• UL and CSA approved
• No External Components Required
• Adjustable Output Voltage

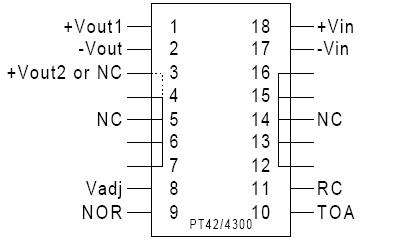

Pinout

Connection Diagram




Description

Power Trends' PT4200 series of isolated DC to DC converters advance the state-ofthe- art for board-mounted converters by employing high switching frequencies, thickfilm technology and a high degree of silicon integration. The high reliability and very low package height makes these converters ideal for Telecom and Datacom applications requiring input-to-output isolation with board spacing down to 0.6". The PT4200 series is offered in a unique molded through-hole or SMD-DIP package with single output voltages of 2V, 3.3V, 5V, and 12V, dual outputs of ±5V, +5V/+3.3V, and ±12V.
