Features:

*CMOS Technology
* Low Power Consumption: 2.0 ~ 4.0 V
*Least External Components
* LED Power Dissipation is less during the transmission of instructions


Application

* Audio Equipment
* Television
* Video Cassette Recorder
* Air Conditioner

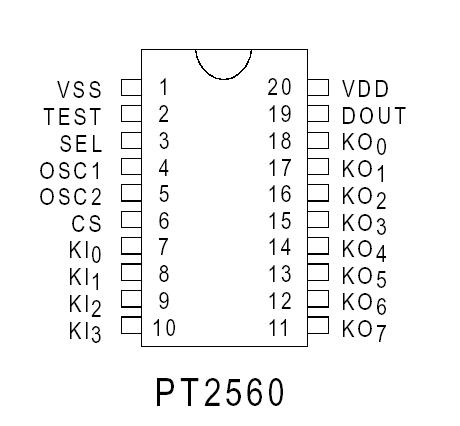

Pinout

Connection Diagram


Description

PT2560 is an infrared remote control transmitter utilizing CMOS technology housed in a 20-pin DIP or SO package. A 4 x 8 key matrix and extension bit inputs allow the transmission of up to 256 instructions. The transmission code consists of 16 bits code (8 bits custom code and 8 bits data code) and a leader code. PT2560 is functionally compatible with M50560. However, there is a slight difference in their application circuits. If you are to replace M50560 with PT2560, you do not need to connect an external capacitor to Pin No.3 (SEL Pin).

Pin assignments and application circuit of PT2560 are optimized for easy PCB layout and cost saving advantage for remote control applications.
