PT2461/2

Features: *CMOS Technology*Low Power Consumption*Least External Components*Wide Range of Operating Voltage : VDD = 1.8 ~ 5.5 V*Double Key Operation (No order of priority given)*On-Chip Oscillator can be constructed using an externally connected ceramic resonator*PT2461 provides 13 bits Custom Code...

product image

PT2461/2 Picture
See larger image
SeekIC No. : 004466265 Detail

PT2461/2: Features: *CMOS Technology*Low Power Consumption*Least External Components*Wide Range of Operating Voltage : VDD = 1.8 ~ 5.5 V*Double Key Operation (No order of priority given)*On-Chip Oscillator ca...

PT2461/2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2461/2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*CMOS Technology
*Low Power Consumption
* Least External Components
*Wide Range of Operating Voltage : VDD = 1.8 ~ 5.5 V
* Double Key Operation (No order of priority given)
*On-Chip Oscillator can be constructed using an externally connected ceramic resonator
* PT2461 provides 13 bits Custom Code while PT2462 provides 8 bits Custom Code
*Using SEL Pin, PT2462 provides 2 custom code options.
*Up to 64 Custom Codes may be selected externally for PT2461


Application

* Multi-Media DVD Player
*Moniputer
* Audio Equipment
* Televisions (TVs)
* Video Cassette Recorders (VCRs)
* Audio Cassette Decks
* Air Conditioners

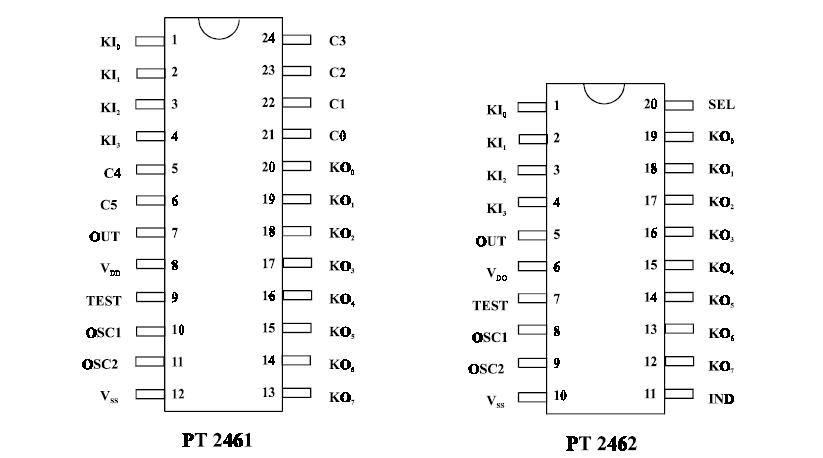

Pinout

Connection Diagram


Description

PT2461 and PT2462 are remote control transmitters utilizing CMOS Technology specially designed for infrared applications. They are compatible with LC7461M and LC7462M respectively and are capable of controlling 32 function keys and 3 double keys. PT2461 is housed in 24 pins, SO or DIP Package and provides 13 bits Custom Code while PT2462 is available in 20 pins, SO or DIP Package and provides 8 bits of Custom Code.
