Product Details

Description

Features:

CMOS Technology
Low Power Consumption
Very High Noise Immunity
Up to 12 Two-State Code Address Pins
Up to 6 Data Pins
Wide Range of Operating Voltage: Vcc = 4 ~ 15 Volts
Single Resistor Oscillator
Latch or Momentary Output Type
Available in DIP and SO Package

Application

Car Security System
Garage Door Controller
Remote Control Fan
Home Security/Automation System
Remote Control Toys
Remote Control for Industrial Use

Pinout

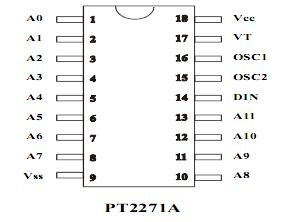

Connection Diagram

Description

PT2271A is a remote control decoder paired with PT2261A utilizing CMOS Technology. It has 12 bits of two-state address pins providing a maximum of 4096 (or 2¹²) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. PT2271A is available in several options to suit every application need : variable number of data output pins, latch or momentary output type.
