Features:

• CMOS technology
• Low power consumption
• Very high noise immunity
• Up to 12 Tri-State code address pins
• Up to 4 data pins
• Wide range of operating voltage: VCC=8 ~ 15V
• Single resistor oscillator
• Latch or momentary output type
• Available in DIP and SOP package

Application

• Remote control fan
• Home security/Automation system
• Remote control toys
• Remote control for door bell

Pinout

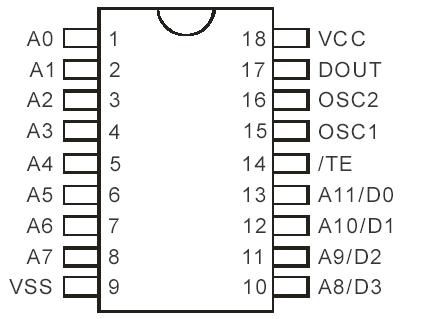

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	V_CC		-0.3 ~ 16.0	V
Input voltage	V_I		-0.3 ~ V_CC+0.3	V
Output voltage	V_O		-0.3 ~ V_CC+0.3	V
Maximum power dissipation	P_a	V_CC=12 V	300	mW
Operating temperature	T_opr		-40 ~ +85
Storage temperature	T_stg		-65 ~ +150

Description

PT2264 is a remote control encoder paired with PT2294 utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF modulation. PT2264 has a maximum of 12 bits of tri-state address pins providing up to 531,441 (or 3¹²) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities.
