Product Details

Description

Features:

*CMOS Technology
*Low Power Consumption
* Very High Noise Immunity
* Up to 12 Two-State Code Address Pins
* Up to 6 Data Pins
* Wide Range of Operating Voltage: Vcc = 4 ~ 15 Volts
* Available in DIP and SO Package
*Single Resistor Oscillator

Application

* Car Security System
* Garage Door Controller
* Remote Control Fan
* Home Security/Automation System
* Remote Control Toys
* Remote Control for Industrial Use

Pinout

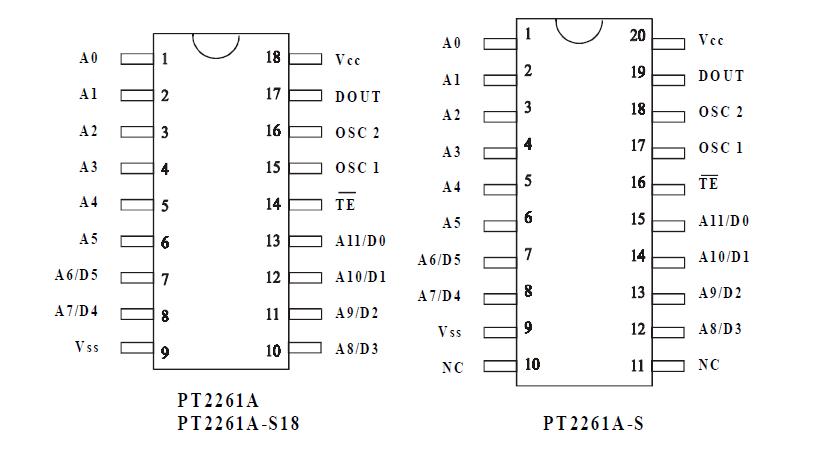

Connection Diagram

Description

PT2261A is a remote control encoder paired with PT2271A utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF modulation. PT2261A has a maximum of 12 bits of two-state address pins providing up to 4096 (or 212) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities.
