Product Details

Description

Features:

• CMOS Technology
• Low Power Consumption
• Least External Components
• Attenuation Range: 0 to -79 dB at 1dB/step
• Operating Voltage: 5 to 9 V
• Low Noise, S/N Ratio>100dB (A-weighting)
• Two Channel Output
• Available in 8-pin, DIP or SO Package

Application

• CMOS Technology
• Low Power Consumption
• Least External Components
• Attenuation Range: 0 to -79 dB at 1dB/step
• Operating Voltage: 5 to 9 V
• Low Noise, S/N Ratio>100dB (A-weighting)
• Two Channel Output
• Available in 8-pin, DIP or SO Package

Pinout

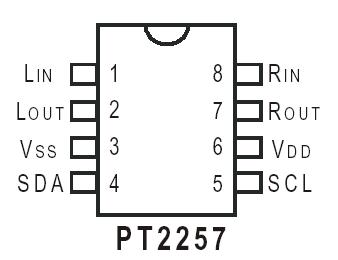

Connection Diagram

Description

PT2257 is an Electronic Volume Controller IC utilizing CMOS Technology specially designed for the new generation of AV Entertainment Products. It has two (2) built-in channels making it ideally suitable for mono and stereo sound applications. PT2257 provides an I²C Control Interface, an attenuation range of 0 to -79 dB, low noise, high channel separation. Housed in 8-pin, DIP or SO Package, PT2257's pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
