Product Details

Description

Features:

CMOS Technology
Low Power Consumption
High Operating Voltage Range : Vcc = 4 ~ 12 V(Backup Voltage is up to 4 V)
0dB to -34dB attenuation controlled by 1dB/step
2 Channels in each chip
Capable to control attenuation by a built-in oscillator and Up/Down Pin
Single Power Supply or Dual Power Supplies of (+) and (-) can be used
Wide Frequency Response Range
Very Low Harmonic Distortion
Available in 16 pins, DIP or SO Package

Application

Audio Equipment Volume Control

Pinout

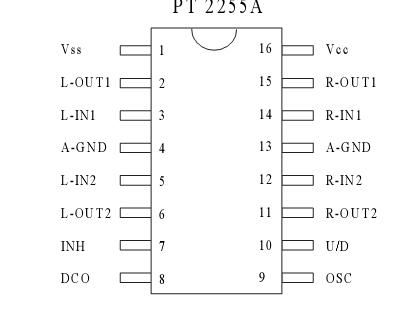

Connection Diagram

Description

PT2255A is an electronic volume controller IC utilizing CMOS Technology specially designed for use on audio equipment. It has two (2) built-in channels making it ideally suitable for mono and stereo sound applications. PT2255A provides a wide frequency response range and a very low harmonic distortion to mention a few; thereby guaranteeing a highly effective and reliable performance.
