PT2221

Features: ` CMOS Technology` Low Power Consumption (VDD=2.0 ∼ 5.5V)` Pin-to-Pin Compatible with PD6121/PD6122` Using SEL pin, PT2221 can support 64+6 function codes` Using SEL pin, PT2222 can support 128 + 6 function codes` Customer Code can be selected (please contact PTC for details)...

product image

PT2221 Picture
See larger image
SeekIC No. : 004466194 Detail

PT2221: Features: ` CMOS Technology` Low Power Consumption (VDD=2.0 ∼ 5.5V)` Pin-to-Pin Compatible with PD6121/PD6122` Using SEL pin, PT2221 can support 64+6 function codes` Using SEL pin, PT2222...

PT2221 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2221
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` CMOS Technology
` Low Power Consumption (VDD=2.0 ∼ 5.5V)
` Pin-to-Pin Compatible with PD6121/PD6122
` Using SEL pin, PT2221 can support 64+6 function codes
` Using SEL pin, PT2222 can support 128 + 6 function codes
` Customer Code can be selected (please contact PTC for details)


Application

· Audio Equipment
· Television (TV)
· Cable TV Tuner
· Video Cassette Recorder (VCR)
· Cassette Deck
· Air Conditioner
· Video Compact Disk (VCD)
· DVD ROM/Player
· Moniputer / Multi-Media Personal Computer System


Pinout

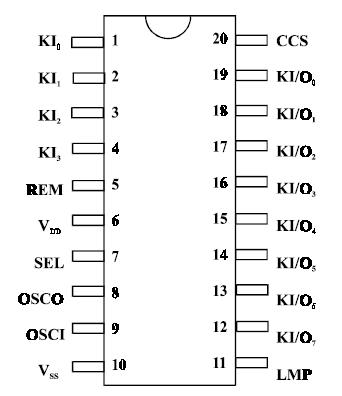

Connection Diagram


Description

The PT2221 and PT2222 are remote control transmitters utilizing CMOS Technology specially designed for use on infrared remote control applications. They are pin-to-pin compatible with NEC PD6121 and PD6122 respectively. PT2221 is packaged in 20 pins SO and capable of controlling 32 functions and 3 double keys. PT2222, on the other hand, is housed in 24 pins SO and capable of ontrolling 64 function keys and 3 double keys. PT2221/2 may be paired with PT2225 to construct a powerful remote control system.
