PT2127A

Features: High Performance CMOS TechnologyLow Power ConsumptionDIP or SO package (22 pin SO not available)Up to 3 Dependent/Independent Swing-Head/Light OutputAvailable in 16, 18, 20, 22, 24 Pin Package for None, One Set or Two Sets of Swing-Head and/Light Control90 Seconds Cycle/6 Seconds per Ste...

product image

PT2127A Picture
See larger image
SeekIC No. : 004466183 Detail

PT2127A: Features: High Performance CMOS TechnologyLow Power ConsumptionDIP or SO package (22 pin SO not available)Up to 3 Dependent/Independent Swing-Head/Light OutputAvailable in 16, 18, 20, 22, 24 Pin Pac...

PT2127A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2127A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Performance CMOS Technology
Low Power Consumption
DIP or SO package (22 pin SO not available)
Up to 3 Dependent/Independent Swing-Head/Light Output
Available in 16, 18, 20, 22, 24 Pin Package for None,
One Set or Two Sets of Swing-Head and/Light Control
90 Seconds Cycle/6 Seconds per Step (Off Step 3 Seconds) Rhythm Wind Pattern
Optional Independent Light Control  Output
Four Operation Modes: Ordinary, Rhythm,
Ordinary Sleep and Rhythm Sleep Memory Start-up Mode
3 or 4 Levels Timer
2~3 Seconds Middle Wind Start-up (Mask Option)


Application

Optimized for fan application
Suitable for heater fan
Cooling fan
Other home appliances with timer and/or output level control

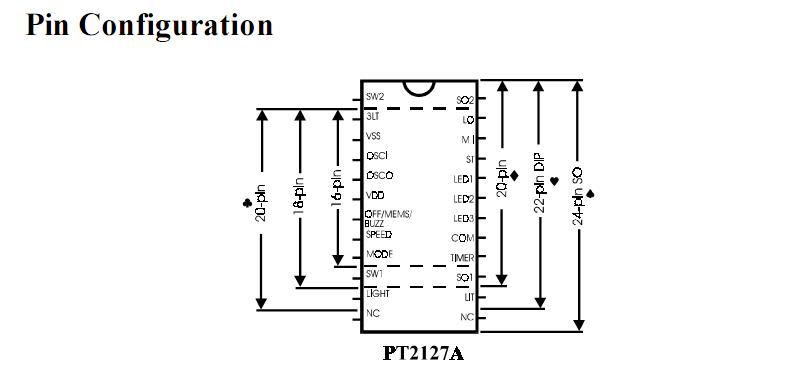

Pinout

Connection Diagram


Description

PT2127A is a high performance electronic fan controller LSI. Speed control, off-timer, rhythm wind, sleep mode, head swing and/or light control are all built into a single chip.  Indicator LED output, buzzer output and key control input are also provided to build a full function electronic fan having he highest performance with the least external components. Furthermore, the pin assignments and application circuit of PT2127A are optimized for easy PCB layout and cost saving for electronic fan application.
