PSF21911

Features: • ISDN U-transceiver with IOM-2 and optional microprocessor interface• Compatible to NT modes and TE mode of PEB 2091 IEC-Q V5.1• Perfectly suited for terminal and TA applications• U-interface (2B1Q) conform to ANSI T1.601, ETSI ETR 080 and CNET ST/LAA/ELR/DNP/822...

product image

PSF21911 Picture
SeekIC No. : 004465837 Detail

PSF21911: Features: • ISDN U-transceiver with IOM-2 and optional microprocessor interface• Compatible to NT modes and TE mode of PEB 2091 IEC-Q V5.1• Perfectly suited for terminal and TA app...

floor Price/Ceiling Price

Part Number:
PSF21911
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ISDN U-transceiver with IOM-2 and optional microprocessor interface
• Compatible to NT modes and TE mode of PEB 2091 IEC-Q V5.1
• Perfectly suited for terminal and TA applications
• U-interface (2B1Q) conform to ANSI T1.601, ETSI ETR 080 and CNET ST/LAA/ELR/DNP/822:
   Meets all transmission requirements on all ANSI, ETSI and CNET loops with margin
  Conform to British Telecom's RC7355E
  Compliant with ETSI 10ms micro interruptions
• IOM-2 interface for connection of e.g. ISAC-S, SICOFI-2/4TE, ARCOFI, ITAC, HSCX-TE, ISAR, IPAC, 3PAC
• Pin compatible to version 4.4 in the P-LCC-44 package In µP mode:
• Parallel or serial microprocessor interface and watchdog
• µP access to B-channels, D-channel and intercommunication channels
• µP access to IOM-2 Monitor-channels and C/I-channels
• Adjustable microcontroller clock source between 0.96MHz and 7.68MHz
• Selection between Bit clock (BCL) and Data clock (DCL)
• Supports synchronization of basestations in cordless applications (e.g. RITL)
• Supports D-channel arbitration with ELIC linecard (e.g. PBX) In all modes:
• Single 5 Volt power supply
• Low power CMOS technology with power down mode



Pinout

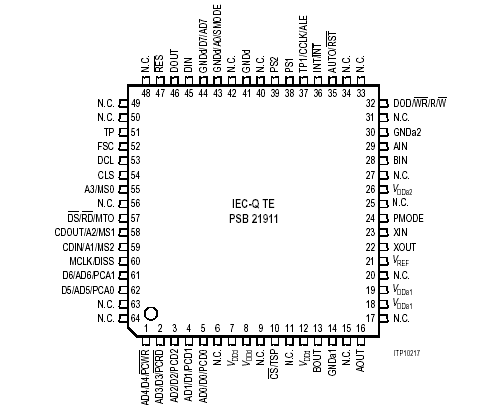

  Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Units
Supply voltage
VDD
0.3 < VDD < 7.0
V
Input voltage
VI
0.3 < VI < VDD + 0.3 (max. 7)
V
Output voltage
VO
0.3 < VO < VDD + 0.3 (max 7)
V
Max. voltage applied at U-Interface
VS
0.3 < VS < VDD + 0.3 (max. 7)
V
Max. voltage between
GNDA1 (GNDA2) and GNDD
VS
± 250
mV
Storage temperature
Tstg
65 to 125
Ambient temperature
PSB 21911
PSF 21911
TA
TA
0 to 70
40 to 85

Thermal resistance
(system-air)
(system-case)
Rth SA
Rth SC
40
9
K/W
K/W
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.

          Exposure to conditions beyond those indicated in the recommended operational conditions of this
          specification may affect device reliability.

          This is a stress rating only and functional operation of the device under those conditions or at any
          other  condition beyond those indicated in the operational conditions of this specification is not implied.

          It is not implied, that more than one of those conditions can be applied simultaneously.


Description

The PSF21911, IEC-Q TE Version 5.2, is a specific derivative of the PEB 2091, IEC-Q for terminal and small PBX applications. It features all necessary functions required for NTs and terminal applications like PC add-on cards and terminal adapters.

In stand-alone mode the PSF21911 IEC-Q TE Version 5.2 can be used fully pin compatible to IEC-Q V4.4 and former versions. In µP mode it offers a parallel or serial microprocessor interface.

The Processor PSF21911 Interface (PI) of the IEC-Q TE V 5.2 establishes the access of a microprocessor between U-interface and IOM-2. It's main function is illustrated in In µP mode B channels, D channel, C/I codes and Monitor commands can either be passed between the U-transceiver and IOM-2 directly, or they can be looped through the µP via the PI. Any selection of "passed" or "looped" channels can be programmed via a control register.

The PSF21911 µP-interface mode is enabled by setting the pin PMODE to "1". This pin was not to be connected in older versions of the IEC-Q. Its internal pull down resistor selects the stand-alone mode, if the pin is left open.

In stand-alone mode the IEC-Q TE PSF21911 is controlled exclusively via the IOM-2 interface and mode selection pins.
