PSD935G2

Features:

`5 V±10% Single Supply Voltage:
` Up to 4 Mbit of Primary Flash Memory (8 uniform sectors)
` 256Kbit Secondary Flash Memory (4 uniform sectors)
` Up to 64 Kbit SRAM
` Over 3,000 Gates of PLD: DPLD
` 52 Reconfigurable I/O ports
` Enhanced JTAG Serial Port
` Programmable power management
` High Endurance:
100,000 Erase/Write Cycles of Flash Memory
1,000 Erase/Write Cycles of PLD


Application

• 4 Mbit of Flash memory
• A secondary Flash memory for boot or data
• Over 3,000 gates of Flash programmable logic
• 64 Kbit SRAM
• Reconfigurable I/O ports
• Programmable power management.


Pinout




Specifications

Symbol	Parameter	Condition	Min.	Max.	Unit
TSTG	Storage Temperature	PLDCC	65	+ 125	°C
	Operating Temperature	Commercial	0	+ 70	°C
		Industrial	40	+ 85	V
	Voltage on any Pin	With Respect to GND	0.6	+ 7	V
VPP	Device Programmer Supply Voltage	With Respect to GND	0.6	+ 14	V
VCC	Supply Voltage	With Respect to GND	0.6	+ 7	V
	ESD Protection		>2000		V

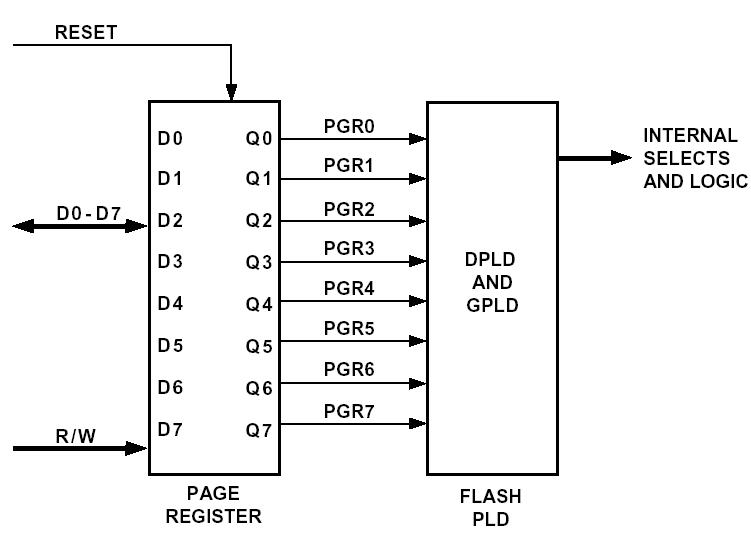

Description

The PSD935G2 series is supported by PSDsoft a Windows-based (95, 98, NT) software development tool. A PSD design is quickly and easily produced in a point and click environment. The designer does not need to enter Hardware Definition Language (HDL) equations (unless desired) to define  PSD pin functions and memory map information. The general design flow is shown in Figure 2 below. PSDsoft is available from our web site (www.st.com/psm) or other distribution channels.

PSDsoft directly supports two low cost device programmers from ST. PSDpro and FlashLINK (JTAG). Both of these programmers may be purchased through your local rep/distributor, or directly from our web site using a credit card. The PSD935G2 is also supported by third party device programmers, see web site for current list.
