PS394

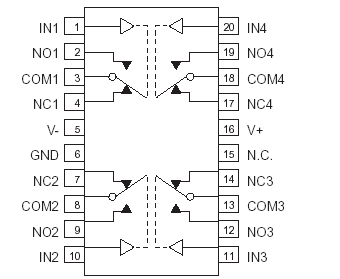

The PS394 is a precision, low-voltage, quad, single-pole/doublethrow (SPDT) analog switch. The four independent switches operate with bipolar supplies ranging from ±2.7V to ±8V, or with a single supply of +2.7V to +15V. It offers low On-resistance (less than 35 Ohm), guaranteed to match within 2 Ohm between channels and to remain flat over the analog signal range (4 Ohm Max.). It also offers break-before-make switching (10ns typical), with turn-off times less than 75ns and turn-on times less than 130ns. The PS394 is ideal for portable operation since quiescent current runs less than 1µA with all inputs high or low.

This monolithic, quad switch PS394 is fabricated using Pericomís 17V silicon-gate process. Design improvements guarantee extremely low charge injection (10pC), low power consumption (10µW), and electrostatic discharge (ESD) greater than 2000V.

About PS394, Logic Inputs are TTL and CMOS compatible and guaranteed over a +0.8V to +2.4V range. Logic inputs and switched analog signals can range anywhere between the supply voltages without damage.
