PRV6

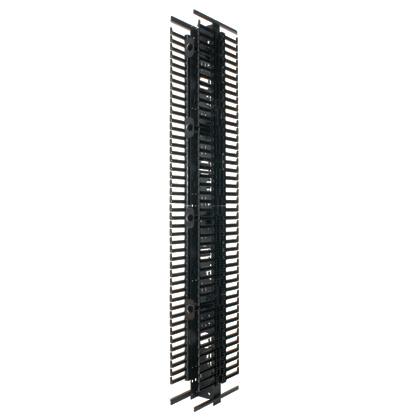

Wire Ducting Patchrunner Vertical Cable Manager Front

product image

PRV6 Picture
See larger image
SeekIC No. : 002493460 Detail

PRV6: Wire Ducting Patchrunner Vertical Cable Manager Front

PRV6 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PRV6
Mfg:
Panduit
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Duct External Height : 2129 mm Duct External Width : 152 mm
Type : Vertical Cable Managers

Description

Material :
Color :
Duct External Height : 2129 mm
Type : Vertical Cable Managers
Duct External Width : 152 mm


Features:

• PRV6 1.5 Watt at 70°C
• PARV6 0.75 Watt at 70°C
• CECC 41300
• Military performances
• Low cost
• Fully sealed and panel sealed
• Compatible RV6 (MIL R 94)
• High power rating (cermet)
• High stability
• Mechanical life 50,000 cycles


Specifications

  PRV6 PARV6
Resistive Element cermet conductive plastic
Electrical Travel 270° ±15° 270° ± 15°
Resistance Range
Linear Law (A) 20Ω to 10MΩ 1 kΩ to 1MΩ
Non Linear Laws (F-L) 470Ω to 1MΩ 470Ω to 500 kΩ (± 20%)
Tolerance Standard ± 20% ± 10% ± 20 %
On Request ± 5 % ± 10 % (1 kΩ to100 kΩ)
Power Rating at + 70 Linear 1.5 W 0.75W
Others Tapers 0.75 W 0.4W
Temperature Coeffi cient ± 100ppm/ ± 1000ppm/
Limiting Element Voltage 350 V 350 V
Contact Resist. Variation CRV

2% or 3Ω

End Resistance (Typical)

1Ω

Dielectric Strength

1750 VRMS (2000 VRMS on request)

Insulation Resistance (500VDC)

106MΩ
