PN511

Features: Highly integrated analog circuitry to demodulate and decode responses Buffered output drivers to connect an antenna with minimum number of external components Integrated RF Level detector Integrated data mode detector ISO 14443A/Mifare support Typical operating distance in Reader/Writer...

product image

PN511 Picture
See larger image
SeekIC No. : 004464301 Detail

PN511: Features: Highly integrated analog circuitry to demodulate and decode responses Buffered output drivers to connect an antenna with minimum number of external components Integrated RF Level detector...

PN511 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PN511
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Highly integrated analog circuitry to demodulate and decode responses
  Buffered output drivers to connect an antenna with minimum number of external components
  Integrated RF Level detector
  Integrated data mode detector
  ISO 14443A/Mifare support
  Typical operating distance in Reader/Writer mode for communication to a ISO 14443A/ Mifare or FeliCa card up to 50 mm depending on the antenna size,        tuning and power supply
  Typical operating distance in NFCIP-1 mode up to 50 mm depending on the antenna size and tuning and power supply
  Typical operating distance in ISO 14443A/Mifare card or FeliCa Card Operation mode of about 100 mm depending on the antenna size and tuning and the        external field strength
  Mifare Classic encryption in Reader/Writer mode support
  ISO 14443A higher transfer speed communication at 212 kbit/s and 424 kbit/s
  Contactless communication according to the FeliCa scheme at 212 kbit/s and 424 kbit/s
  Integrated RF interface for NFCIP-1 up to 424 kbit/s
  S S2C interface
  Supported host controller interfaces
       SPI interface up to 10 Mbit/s
       I2C interface up to 400 C kbit/s in Fast mode, up to 3400 kbit/s in High-speed mode
       serial UART in different transfer speeds up to 1228.8 kbit/s, framing according to the RS232 interface with voltage levels according pad voltage supply
       8-bit parallel interface with and without Address Latch Enable
  Comfortable 64 byte send and receive FIFO-buffer
  Flexible interrupt modes
  Hard reset with low power function
  Power-down mode per software
  Programmable timer
  Internal oscillator to connect 27.12 MHz quartz
  2.5-3.6 V power supply
  CRC Co-processor
  Free programmable I/O pins
  Internal self test

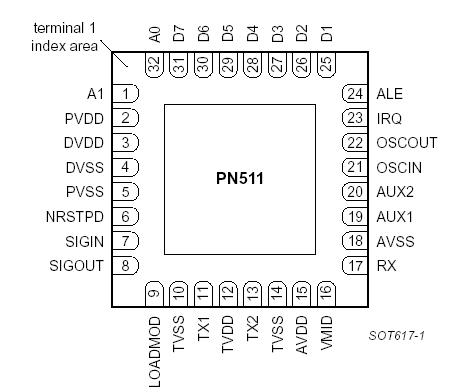

Pinout

Connection Diagram


Description

The PN511 is a highly integrated transceiver IC for contactless communication at 13.56 MHz. This transceiver IC utilizes an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.

The PN511 transceiver ICs support 3 different operating modes
• Reader/Writer mode supporting ISO 14443A/Mifare and FeliCa scheme
• Card Operation mode supporting ISO 14443A/Mifare and FeliCa scheme
• NFCIP-1 mode

Enabled in Reader/Writer mode for ISO 14443A/Mifare, the PN511's internal transmitter part is able to drive a reader/writer antenna designed to communicate with ISO 14443A/ Mifare cards and transponders without additional active circuitry. The receiver part provides a robust and efficient implementation of a demodulation and decoding circuitry for signals from ISO 14443A/Mifare compatible cards and transponders. The digital part handles the complete ISO 14443A framing and error detection (Parity & CRC).

The PN511 supports Mifare Classic (e.g. Mifare Standard) products. The PN511 supports contactless communication using Mifare higher transfer speeds up to 424 kbit/s in both directions.

Enabled in Reader/Writer mode for FeliCa, the PN511 transceiver IC supports the FeliCa communication scheme. The receiver part provides a robust and efficient implementation of the demodulation and decoding circuitry for FeliCa coded signals. The digital part handles the FeliCa framing and error detection like CRC. The PN511 supports contactless communication using FeliCa Higher transfer speeds up to 424 kbit/s in both directions. In Card Operation mode, the PN511 transceiver IC is able to answer to a reader/writer command either according to the FeliCa or ISO 14443A/Mifare card interface scheme. The PN511 generates the digital load modulated signals and in addition with an external circuit the answer can be sent back to the reader/writer. A complete card functionality is only possible in combination with a secure core IC using the S S2C interface.
