PM8380

Features: • Four bi-directional 2:1 SATA or SAS multiplexer/demultiplexer.• Compliant with SAS Internal and External specification.• SATA Gen1i, Gen1x, Gen2i, Gen2x compliant.• In the downstream direction, the QuadSMX 3G demuxes the initiator-side receive ports to either th...

product image

PM8380 Picture
See larger image
SeekIC No. : 004463903 Detail

PM8380: Features: • Four bi-directional 2:1 SATA or SAS multiplexer/demultiplexer.• Compliant with SAS Internal and External specification.• SATA Gen1i, Gen1x, Gen2i, Gen2x compliant.̶...

PM8380 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PM8380
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Four bi-directional 2:1 SATA or SAS multiplexer/demultiplexer.
• Compliant with SAS Internal and External specification.
• SATA Gen1i, Gen1x, Gen2i, Gen2x compliant.

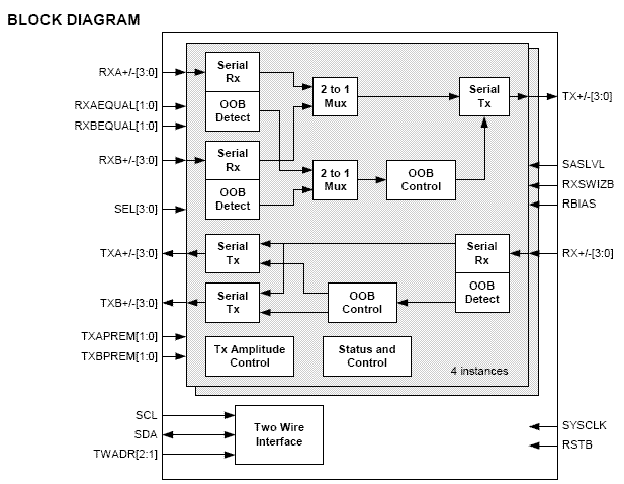

• In the downstream direction, the QuadSMX 3G demuxes the initiator-side receive ports to either the A or B device-side transmit ports.
• In the upstream direction, the QuadSMX 3G selects either the A or B device-side receive port to output on the initiator-side transmit ports.
• Passes-thru out-of-band (OOB) signaling.
• Internal OOB detectors for COMSAS, COMRESET/COMINIT and COMWAKE.
• Provides port reordering to support standard SATA/SAS 4 channel connectors and easier PCB routing.




Application

• Host Bus Adapter.
• RAID controller.
• Ethernet (1GE and 10 GE XAUI) and Fibre Channel (1,2 and 10 GFC) link extender.
• Ethernet (1GE and 10 GE XAUI) and Fibre Channel (1,2 and 10 GFC) mux/demux.
• PCI Express, PCI Advanced Switching, ATCA, serial RapidIO, Infiniband, and HDTV link extender and mux/demux.






Pinout
