PM7341

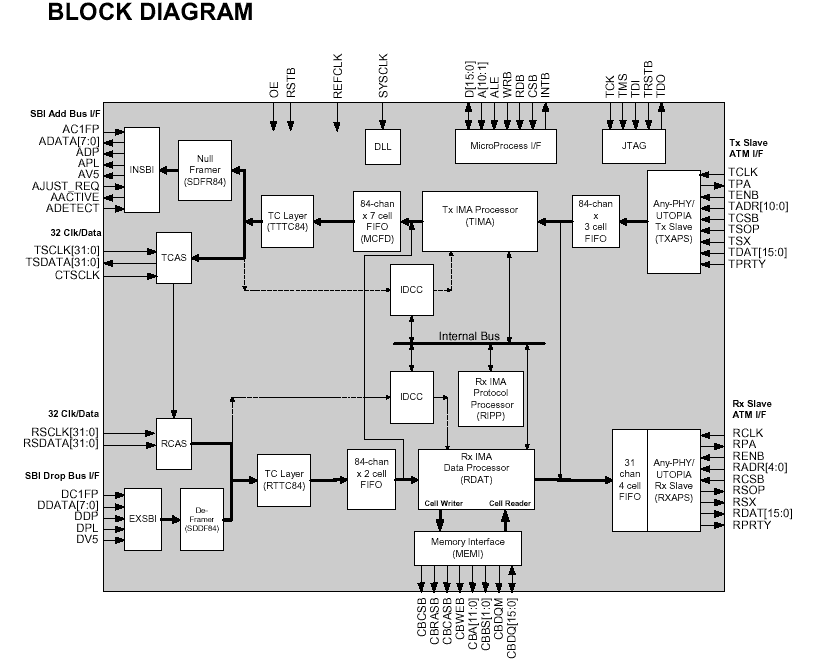

The PM7341 S/UNI-IMA-84 is a monolithic integrated circuit that implements the ATM Forum Inverse Multiplexing for ATM (IMA 1.1) protocol with backward compatibility to IMA 1.0 and the Transmission Convergence (TC) layer function. The S/UNI-IMA-84 has two line side interface modes that determine the total number of physical links supported: the Scalable Bandwidth Interconnect (SBI) bus interface mode and the Clock and Data interface mode.

In SBI mode, the S/UNI-IMA-84 supports up to 84 T1, 63 E1 or 3 DS3 (TC only) physical links where each link is dynamically configurable to support either IMA 1.1, backward compatible IMA 1.0, ATM over T1/E1 or up to three ATM over DS3 streams (using HEC delineation).

In Clock and Data mode, the S/UNI-IMA-84 supports 32 independent T1, E1 or unchannelized physical links. Each link is dynamically configurable to support either IMA 1.1, backward compatible IMA 1.0, or ATM HEC cell delineation. ATM over fractional T1/E1 is also supported. Unchannelized links may be used to support applications such as G.SHDSL.

The PM7341 S/UNI-IMA-84 is a monolithic integrated circuit that implements the
Inverse Multiplexing for ATM (IMA 1.1) protocol with backward compatibility to
IMA 1.0 and the Transmission Convergence (TC) layer function of PM7341. The S/UNIIMA-
84 has two line side interface modes that determine the total number of links
supported: the Scalable Bandwidth Interconnect (SBI) bus interface mode of PM7341  and
the Clock and Data interface mode. In SBI mode, the S/UNI-IMA-84 supports up
to 84 T1, 63 E1 and 3 DS3 (TC only) links where each link is dynamically
configurable to support either IMA 1.1, backward compatible IMA 1.0, ATM over
T1/E1 and up to three ATM over DS3 streams (using HEC delineation).

In the Clock and Data interface mode, the S/UNI-IMA-84 PM7341 supports 32
independent T1, E1 or unchannelized links. Each link is dynamically configurable
to support either IMA 1.1, backward compatible IMA 1.0, or ATM HEC cell
delineation. ATM over Fractional T1/E1 is also supported. Unchannelized links
of PM7341 may be used to support applications such as G.SHDSL.

All links of PM7341 within an IMA group must be the same nominal rate, however the link
rates within a group can be different across groups.

The Scaleable Bandwidth Interconnect (SBI) PM7341 high-density byte serial system
interface provides higher levels of integration and dense interconnect. The SBI
bus interconnects up to 84 T1s or 63 E1s asynchronously. The SBI allows transmit timing of PM7341 to be mastered by the PHY layer device connected to the SBI bus with the S/UNI-IMA-84 always behaving as a clock slave. In addition to framed T1s and E1s, the S/UNI-IMA-84 can transport framed DS3 links over the SBI
bus.

The S/UNI-IMA-84 PM7341 also supports a clock and data interface mode where 32 2-pin serial clock and data interfaces are provided. Each clock and data interface can be configured to support either a T1 link, E1 link, or an unchannelized link of PM7341. For IMA, all links within a group must be the same nominal rate, but IMA groups consisting of either E1 or T1 links may coexist within the S/UNI-IMA-84 PM7341. Additionally, for cell delineation only, ATM over fractional T1/E1 is supported by allowing individual DS0 timeslots to be configured as active or inactive.

IMA of PM7341 is a protocol designed to combine the transport bandwidth of multiple links into a single logical link. The logical link is called a group. The S/UNI-IMA-84 can support up to 42 independent groups with each group capable of supporting 1 to 32 links. Any link that is not participating in an IMA group can utilize the cell
