PM3392

• Implements 10 Gigabit Ethernet LAN PHY according to the IEEE P802.3ae standard currently under development.
• Provides direct connection to optics via a 16-bit by 645 MHz IEEE P802.3ae XSBI line-side interface.
• Provides SATURN® POS-PHY Level 4™ 16-bit LVDS system-side interface (clocked at 700 MHz nominal).
• Provides standard IEEE 802.3ae 10 Gigabit Ethernet Media Access Controller (10GMAC) for frame verification.
• Implements IEEE P802.3ae 64B/66B Physical Coding Sublayer (PCS).
• Internal 128 KB ingress FIFO and 16 KB egress FIFO to accommodate system latencies and provide lossless flow control up to 5 km for regular size frames.
• Line-side and system side loopback for system level diagnostic capability.
• Provides a generic 16-bit microprocessor bus interface for configuration, control, and status monitoring.
• Standard 5 signal P1149.1 JTAG test port.
• Low-power 1.8 V CMOS core logic with 3.3 V CMOS/TTL compatible digital inputs and digital outputs.
• Industrial temperature range (-40 °C to +85 °C).
• 896-pin FCBGA package.

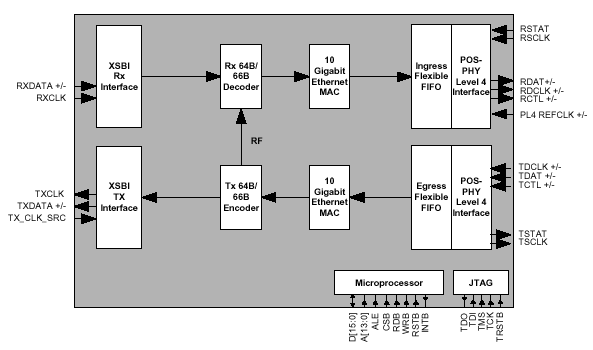

The S/UNI 1x10GE is a single chip 10 Gigabit Ethernet LAN PHY operating at 10.3 Gbit/s. The S/UNI 1x10GE is intended for application in 10 Gigabit Ethernet LAN PHY port cards. The S/UNI 1x10GE uses the POS-PHY Level 4™ system-side interface and the XSBI line-side interface.
