Product Details

Description

Application

General purpose inverter, servo drives and other motor controlers

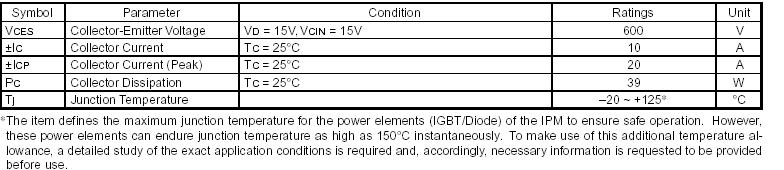

Specifications

(Tj = 25°C, unless otherwise noted)
Connection Diagram

Description

PM10CNJ060 feature

• 3 phase IGBT (10A/600V) inverter output
• Monolithic gate drive & protection logic circuit
• Protection logic
• Over circuit (OC)
• Short circuit (SC)
• Over temperature (OT)
• Under voltage lock-out (UV)
• UL Recognized
File No. E80271
Yellow Card No. E80276
