Product Details

Description



Features:

• Field-programmable (Ni-Cr link)
• Input variables: 16
• Output functions: 8
• Product terms: 48
• I/O propagation delay: 50ns (max.)
• Power dissipation: 600mW (typ.)
• Input loading: 100mA (max.)
• Chip Enable input
• Output option: PLS100: 3-State PLS101: Open-Collector
• Output disable function: 3-State: Hi-Z Open-Collector: High


Application

• CRT display systems
• Code conversion
• Peripheral controllers
• Function generators
• Look-up and decision tables
• Microprogramming
• Address mapping
• Character generators
• Data security encoders
• Fault detectors
• Frequency synthesizers
• 16-bit to 8-bit bus interface
• Random logic replacement

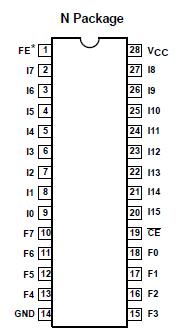

Pinout

Connection Diagram Connection Diagram


Specifications

SYMBOL
PARAMETER
RATING
UNIT
VCC
 Supply voltage
+7.0
VDC
VIN
 Input voltage
+5.5
VDC
VO
 Output voltage
+5.5
VDC
IIN
 Input currents
±30
nA
IOUT
 Output currents
0 to +75
mA
TAMB
 Operating temperature range
65 to +150
TSTG
 Storage temperature range
+150


NOTE:
1. Stresses above those listed may cause malfunction or permanent damage to the device. This is a stress rating only. Functional operation at these or any other conditions above those indicated in the operational and programming specification of the device is not implied.




Description

The PLS100 (3-State) and PLS101 (Open Collector) are bipolar, fuse Programmable Logic Arrays (PLAs). Each device utilizes the standard AND/OR/Invert architecture to directly implement custom sum of product equations.

PLS100 consists of 16 dedicated inputs and 8 dedicated outputs. Each output is capable of being actively controlled by any or all of the 48 product terms. The True, Complement, or Don't Care condition of each of the 16 inputs and be ANDed together to comprise one P-term. All 48 P-terms can be selectively ORed to each output.

The PLS100 and PLS101 are fully TTL compatible, and chip enable control for expansion of input variables and output inhibit. PLS100 and PLS101 feature either Open Collector or 3-State outputs for ease of expansion of product terms and application in bus-organized systems.

Order codes are listed in the Ordering Information Table.
