Features:

·  Single Low EMI IC to replace multiple crystals and oscillators on Notebooks and
     Motherboards (27MHz, 8MHz, 12MHz, 24.576MHz, 25MHz).
·  Single crystal input: 24.576MHz (accuracy requirement +/- 20ppm)
·  Less than 10ppm Frequency Synthesis error, meeting
     AC97, IEEE1394, IEEE802 and USB2.0 frequency
     precision specification.
·  27MHz clock with 5 levels of Selectable Spread
     Spectrum modulation form +/- 0.5% to +/- 1.5% center.
·  25MHz clock with double drive strength (Ethernet PHY and MAC).
·  24.576MHz clocks for Audio Codec and IEEE1394.
·  Selectable 12MHz (USB 2.0) or 8MHz (Keyboard controller).
·  Dual power source selection for 24.576MHz, 8MHz, and 12MHz.
·  Available in 16-Pin SOIC or TSSOP.


Pinout

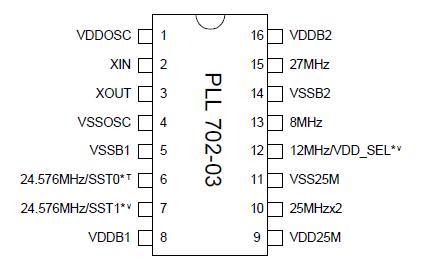

Connection Diagram


Specifications

PARAMETERS

 SYMBOL MIN. MAX. UNITS
Supply Voltage Range VCC -0.5 7 V
Input Voltage Range VI -0.5 VCC+0.5 V
Output Voltage Range VO -0.5 VCC+0.5 V
Soldering Temperature     260 °C
Storage Temperature TS -65 150 °C
Ambient Operating Temperature TA 40 85 °C
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause
permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for
             INDUSTRIAL grade only.
