PLL520-28

Features: • 120MHz to 200MHz Fundamental Mode Crystal.• Output range: 120 200MHz (no PLL).• Low Injection Power for crystal 50uW.• Sub 0.5pS RMS phase jitter ( 12kHz to 20MHz ).• PECL (PLL520-28) or LVDS output (PLL520-29).• Integrated variable capacitors.̶...

product image

PLL520-28 Picture
See larger image
SeekIC No. : 004463344 Detail

PLL520-28: Features: • 120MHz to 200MHz Fundamental Mode Crystal.• Output range: 120 200MHz (no PLL).• Low Injection Power for crystal 50uW.• Sub 0.5pS RMS phase jitter ( 12kHz to 20MH...

PLL520-28 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL520-28
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 120MHz to 200MHz Fundamental Mode Crystal.
• Output range: 120 200MHz (no PLL).
• Low Injection Power for crystal 50uW.
• Sub 0.5pS RMS phase jitter ( 12kHz to 20MHz ).
• PECL (PLL520-28) or LVDS output (PLL520-29).
• Integrated variable capacitors.
• Supports 2.5V or 3.3V-Power Supply.
• Available in 16-Pin (TSSOP or 3x3mm QFN).




Pinout

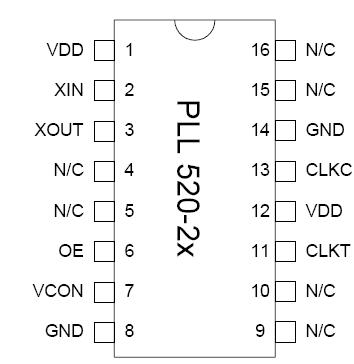

Connection Diagram




Specifications

PARAMETERS SYMBOL MIN. MAX. UNITS
Supply Voltage VDD 4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature TS -65 150 °C
Ambient Operating Temperature TA -40 85 °C
Junction Temperature TJ 125 °C
Lead Temperature (soldering, 10s) 260 °C
ESD Protection, Human Body Model 2 kV
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.




Description

The PLL520-28/-29 are a family of VCXO IC's specifically designed to pull high frequency fundamental crystals. They achieve very low current into the crystal resulting in better overall stability. Their internal varicaps allow an on chip frequency pulling, controlled by the VCON input. PLL520-28/-29's very low jitter makes them ideal for the most demanding timing requirements
