PLL520-05

Features: • 100MHz to 200MHz Fundamental Mode Crystal.• Output range: 100 200MHz (no multiplication), 200 400MHz (2x multiplier), 400 800MHz (4x multiplier), or 800MHz 1GHz (PLL520-09 TSSOP only, 8x multiplier).• High yield design supports up to 2pF stray capacitance at 200MH...

product image

PLL520-05 Picture
See larger image
SeekIC No. : 004463337 Detail

PLL520-05: Features: • 100MHz to 200MHz Fundamental Mode Crystal.• Output range: 100 200MHz (no multiplication), 200 400MHz (2x multiplier), 400 800MHz (4x multiplier), or 800MHz 1GHz (PLL520-0...

PLL520-05 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL520-05
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 100MHz to 200MHz Fundamental Mode Crystal.
• Output range: 100 200MHz (no multiplication), 200 400MHz (2x multiplier), 400 800MHz (4x multiplier), or 800MHz 1GHz (PLL520-09 TSSOP only, 8x multiplier).
• High yield design supports up to 2pF stray capacitance at 200MHz.
• CMOS (Standard drive PLL520-07 or Selectable Drive PLL520-06), PECL (Enable low PLL520-08 or Enable high PLL520-05) or LVDS output (PLL520-09).
• Integrated variable capacitors.
• Supports 3.3V-Power Supply.
• Available in 16-Pin (TSSOP or 3x3mm QFN)
  Note: PLL520-06 only available in 3x3mm.
  Note: PLL520-07 only available in TSSOP.

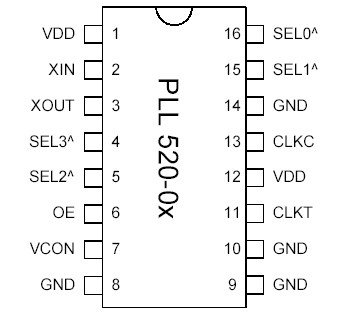

Pinout

Connection Diagram


Specifications

PARAMETERS Symbol MIN. MAX. Units
Supply Voltage VDD   4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature TS -65 150 °C
Ambient Operating Temperature* TA -40 85 °C
Junction Temperature TJ   125 °C
Lead Temperature (soldering, 10s)     260 °C
ESD Protection, Human Body Model     2 kV
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.


Description

The PLL520-05/-06/-07/-08/-09 is a family of VCXO ICs specifically designed to pull high frequency fundamental crystals. Their design was optimized to tolerate higher limits of interelectrode capacitance and bonding capacitance to improve yield. PLL520-05/-06/-07/-08/-09 achieve very low current into the crystal resulting in better overall stability. Their internal varicaps allow an on chip frequency pulling, controlled by the VCON input.
