Product Details

Description



Features:

·  VCXO output for the 27MHz to 200MHz range
- PLL500-27: 27MHz to 65MHz
- PLL500-37: 65MHz to 130MHz
- PLL500-47: 100MHz to 200MHz
·  Low phase noise (-130 dBc @ 10kHz offset).
·  CMOS output with OE tri-state control.
·  Selectable output drive (Standard or High drive).
- Standard: 12mA drive capability at TTL level.
- High: 36mA drive capability at TTL level.
·  Fundamental crystal input.
·  Integrated high linearity variable capacitors.
·  +/- 150 ppm pull range, max 5% linearity.
·  Low jitter (RMS): 2.5ps period jitter.
·  2.5-3.3V operation.
·  Available in 8-Pin SOIC or DIE.

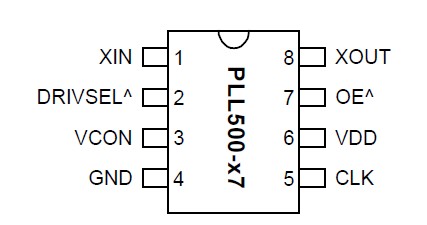

Pinout

Connection Diagram


Specifications

PARAMETERS
SYMBOL
MIN.
MAX.
UNITS
Supply Voltage Range
VDD
-0.5
7
V
Supply Voltage Range
VI
-0.5
VDD+0.5
V
Supply Voltage Range
VO
-0.5
VDD+0.5
V
Soldering Temperature
260
°C
Storage Temperature
TS
-65
150
°C
Ambient Operating Temperature*
0
70
°C



Description

The PLL500-27/-37/-47 are a low cost, high performance, low phase noise, and high linearity VCXO family for the 27 to 200MHz range, providing less than - 130dBc at 10kHz offset. The very low jitter (2.5 ps RMS period jitter) makes PLL500-27/-37/-47 ideal for applications requiring voltage controlled frequency sources. The IC's are designed to accept fundamental resonant mode crystals.
