PLL103-01

Features: · Generate 18 copies of High-speed clock inputs.· Supports up to four SDRAM DIMMS synchronous clocks.· Supports 2-wire I2C serial bus interface with readback.· 50% duty cycle with low jitter.· Less than 5ns delay.· Skew between any outputs is less than 250 ps.· Tri-state pin for testing....

product image

PLL103-01 Picture
See larger image
SeekIC No. : 004463301 Detail

PLL103-01: Features: · Generate 18 copies of High-speed clock inputs.· Supports up to four SDRAM DIMMS synchronous clocks.· Supports 2-wire I2C serial bus interface with readback.· 50% duty cycle with low jitt...

PLL103-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLL103-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Generate 18 copies of High-speed clock inputs.
·  Supports up to four SDRAM DIMMS synchronous clocks.
·  Supports 2-wire I2C serial bus interface with readback.
·  50% duty cycle with low jitter.
·  Less than 5ns delay.
·  Skew between any outputs is less than 250 ps.
·  Tri-state pin for testing.
·  Frequency up to 133 MHZ.
·  3.0V-3.7V Supply range.
·  48-pin SSOP package.


Pinout

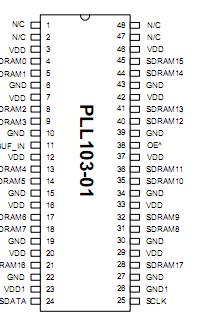

Connection Diagram


Specifications

SYMBOL PARAMETERS MIN. MAX. UNITS
VDD Supply Voltage VSS-0.5 7.0 V
VI Input Voltage, dc VSS-0.5 VDD+0.5 V
VO Output Voltage, dc VSS-0.5 VDD+0.5 V
TS Storage Temperature -65 150
TA Ambient Operating Temperature 0 70

Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability.  These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.
