Product Details

Description



Features:

` ESD PROTECTION > 40 kilovolts
` 1,500 Watts Peak Pulse Power per Line (tp=10/1000s)
` Low Clamping Voltage
` 100A (10/1000s) per Bellcore 1089(Intra-Building)
` 200A (10/160s) per FCC Part 68
` Bidirectional Configuration
` Protects 1 Line


Application

· T1/E1 Line Cards
· ISDN Telecom Equipment
· xDSL, USB, SCSI & Ethernet Interfaces
· Cellular Base Stations
· Data & Bus Lines for FCC Part 68 Applications


Pinout

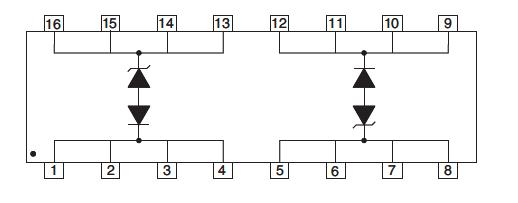

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNITS
Peak Pulse Power (td = 10/1000s) - See Figure 1
PPP
1,500
Watts
Operating Temperature
TJ
-55°C to 150°C
°C
Storage Temperature
TSTG
-55°C to 150°C
°C
