PLA191

Mounting Style :
Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Package / Case : DIP-6
Load Current Rating : 250 mA
Load Voltage Rating : 400 V


Features:

• 5000VRMS Input/Output Isolation
• Small 6 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available




Application

• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls

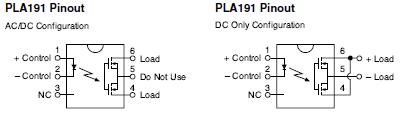

Pinout






Specifications

Parameter	Min	Typ	Max	Units
Input Power Dissipation	-	-	1501	mW
Input Control Current	-	-	50	mA
Peak (10ms)	-	-	1	A
Reverse Input Voltage	-	-	5	V
Total Power Dissipation	-	-	8002	mW
Isolation Voltage Input to Output	5000	-	-	VRMS
Operational Temperature	-40	-	+85
Storage Temperature	-40	-	+125
Soldering Temperature DIP Package	-	-	+260
Surface Mount Package (10 Seconds Max.)	-	-	+220

1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C




Description

The PLA191 is a 1-Form-A solid state relay that uses optically coupled relay technology to provide an enhanced 5000V isolation barrier between the input and the output of the relay. The PLA191 efficient MOSFET switches use Clares patented OptoMOS architecture. The optically coupled input is controlled by a highly efficient GaAIAs infrared LED.




Parameters:

Technical/Catalog Information	PLA191
Vendor	Clare
Category	Relays
Mounting Type	Through Hole
Termination Style	PC Pin
Package / Case	6-DIP
Circuit	SPST-NO (1 Form A)
Load Current	250mA
Voltage - Input	1.2VDC
Voltage - Load	0 ~ 400V
Output Type	AC, DC
On-State Resistance	8 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PLA191 PLA191
