PLA143

Solid State Relays Single Pole

product image

PLA143 Picture
See larger image
SeekIC No. : 0095962 Detail

PLA143: Solid State Relays Single Pole

PLA143 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLA143
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Load Voltage Rating : 600 V
Load Current Rating : 100 mA Package / Case : DIP-6

Description

Mounting Style :
Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Package / Case : DIP-6
Load Current Rating : 100 mA
Load Voltage Rating : 600 V


Features:

• Small 6 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 4000VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• 600 volt blocking




Application

• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls




Pinout

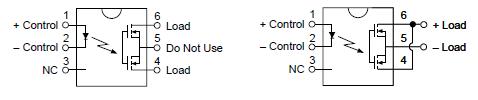

Connection Diagram




Specifications

Parameter
Min
Typ
Max
Units
Input Power Dissipation
-
-
1501
mW
Input Control Current
-
-
50
mA
Peak (10ms)
-
-
1
A
Reverse Input Voltage
-
-
5
V
Total Power Dissipation
-
-
8002
mW
Isolation Voltage
Input to Output
3750
-
-
VRMS
Operational Temperature
-40
-
+85
Storage Temperature
-40
-
+125
Soldering Temperature
DIP Package
-
-
+260
Surface Mount Package
(10 Seconds Max.)
-
-
+220

1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C




Description

The PLA143 is a 1-Form-A solid state relay which uses optically coupled MOSFET technology to provide enhanced input to output isolation of 4000V. The efficient MOSFET switches and photovoltaic die use Clare's patented OptoMOS® architecture. The optically-coupled input is controlled by a highly efficient GaAIAs infrared LED. The PLA143 can be used to replace mechanical relays and offers the superior reliability associated with semiconductor devices. Because they have no moving parts, they can offer faster, bounce-free switching in a more compact surface mount or through hole package.






Parameters:

Technical/Catalog InformationPLA143
VendorClare
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case6-DIP
CircuitSPST-NO (1 Form A)
Load Current100mA
Voltage - Input1.2VDC
Voltage - Load0 ~ 600V
Output TypeAC, DC
On-State Resistance50 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PLA143
PLA143
