PLA140

Solid State Relays SPST-NO 6PIN DIP

product image

PLA140 Picture
See larger image
SeekIC No. : 0091364 Detail

PLA140: Solid State Relays SPST-NO 6PIN DIP

PLA140 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PLA140
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Mounting Style : SMD/SMT
Load Voltage Rating : 400 V Load Current Rating : 250 mA
Package / Case : DIP-6

Description

Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Mounting Style : SMD/SMT
Package / Case : DIP-6
Load Current Rating : 250 mA
Load Voltage Rating : 400 V


Features:

• Small 6 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available




Application

• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls
• Automotive

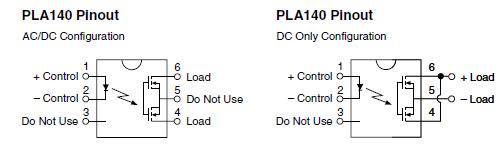

Pinout






Specifications

Parameter
Min
Typ
Max
Units
Input Power Dissipation
-
-
1501
mW
Input Control Current
-
-
50
mA
Peak (10ms)
-
-
1
A
Reverse Input Voltage
-
-
5
V
Total Power Dissipation
-
-
8002
mW
Isolation Voltage
Input to Output
3750
-
-
VRMS
Operational Temperature
-40
-
+85
Storage Temperature
-40
-
+125
Soldering Temperature
DIP Package
-
-
+260
Surface Mount Package
(10 Seconds Max.)
-
-
+220

1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C




Description

PLA140 is a 400V, 250mA, 8 1-Form-A relay. This performance leader combines high peak load voltage capability, high peak load current capability, and very low on-resistance to provide superior performance.






Parameters:

Technical/Catalog InformationPLA140
VendorClare
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case6-DIP
CircuitSPST-NO (1 Form A)
Load Current250mA
Voltage - Input1.2VDC
Voltage - Load0 ~ 400V
Output TypeAC, DC
On-State Resistance8 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PLA140
