Features:

• Less than 0.4ps RMS (12KHz-20MHz) phase jitter for all frequencies.
• Low phase noise output (@ 1MHz frequency offset
   -140dBc/Hz for 320.0MHz,
   -131dBC/Hz for 622.08MHz
• 20MHz-40MHz crystal input.
• 320MHz-640MHz output.
• Available in PECL, or LVDS outputs.
• No external varicap required.
• Output Enable selector.
• Wide pull range (+/-200ppm).
• 3.3V operation.
• Available in 3x3 QFN or 16-pin TSSOP packages.


Pinout

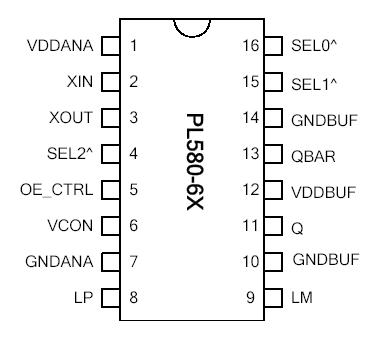

Connection Diagram


Specifications

PARAMETERS SYMBOL MIN. MAX. UNITS
Supply Voltage VDD -0.5 4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -65 VDD+0.5 V
Storage Temperature TS -40 150 °C
Ambient Operating Temperature* TA   85 °C
Junction Temperature TJ   125 °C
Lead Temperature (soldering, 10s)     260 °C
ESD Protection, Human Body Model     2 kV



Description

The PL580-6X is a monolithic low jitter and low phase noise VCXO, capable of 0.4ps RMS phase jitter and PECL or LVDS outputs, covering a wide frequency output range up to 640MHz. It allows the control of the output frequency with an input voltage (VCON), using a low cost crystal. The PL580-6X is designed to address the demanding requirements of high performance applications such as SONET, GPS, Video, etc.
