PJ2108

Features: OPERATIONA AMPLIFIER• Low input offset voltage : 0.5mV typ. For PJ2108• Low supply current : 350A/op. (@ VCC=5V)• Medium bandwidth (unity gain) : 0.9MHz• Large output voltage swing : 0V to (Vcc-1.5V)• Input common mode voltage range includes ground• Wi...

product image

PJ2108 Picture
See larger image
SeekIC No. : 004462708 Detail

PJ2108: Features: OPERATIONA AMPLIFIER• Low input offset voltage : 0.5mV typ. For PJ2108• Low supply current : 350A/op. (@ VCC=5V)• Medium bandwidth (unity gain) : 0.9MHz• Large outp...

PJ2108 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PJ2108
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

OPERATIONA AMPLIFIER
• Low input offset voltage : 0.5mV typ. For PJ2108
• Low supply current : 350A/op. (@ VCC=5V)
• Medium bandwidth (unity gain) : 0.9MHz
• Large output voltage swing : 0V to (Vcc-1.5V)
• Input common mode voltage range includes ground
• Wide power supplu range : 3 to 32V , ±1.5 to ±16
VOLTAGE REFERENCE
• Fixed output voltage reference 2.5V
• 0.4% and 1% voltage precision
• Sink current capability : 1 to 100mA
• Typical output impedance : 0.2


Pinout

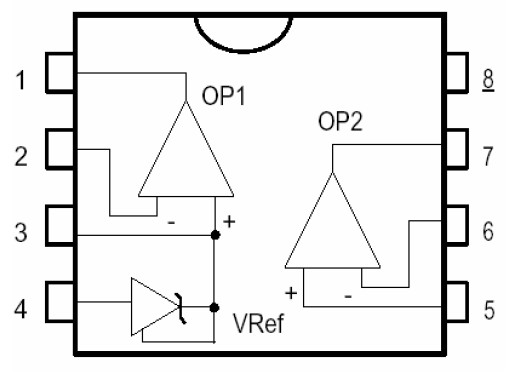

Connection Diagram


Specifications

Rating
Symbol
PJ358
Unit
Power Supply Voltage Single Supply
Split Supplies
Input Differential Voltage Range (1)
Input Common Mode Voltage Range (2)
Input forward current (3) (VI --0.3V)
Output Short Circuit Duration
Junction Temperature Plastic Packages
Storage Temperature Range Plastic Packages
VCC
VCC, VEE
VIDR
VICR
IIF
tS
TJ
Tstg
32
±16
±32
0.3 to 32
50
Continuous
150
55 to +125
Vdc

Vdc
Vdc
mA





Description

The PJ2108 is a monolithic IC that includes one independent op-amp and another op-amp for which the non inverting input is wired to a 2.5V fixed Voltage Reference. PJ2108 is offering space and cost saving in many applications like power supply management or data acquisition systems
