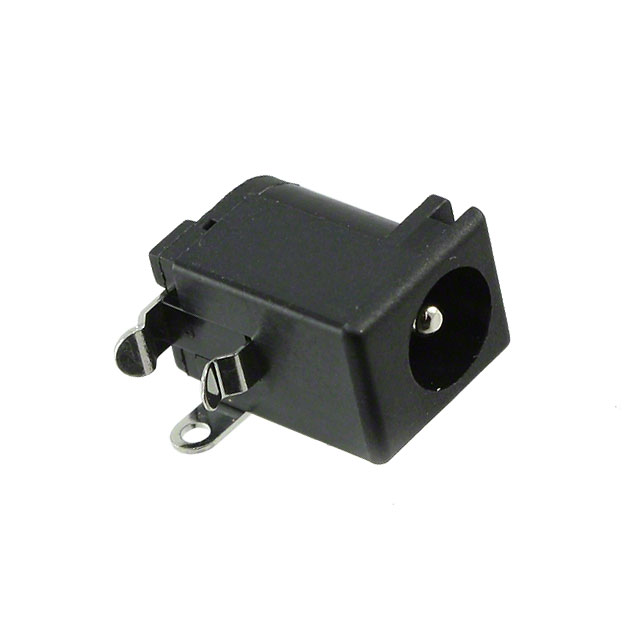

PJ-202B

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Shielding: Unshielded
Features: -
Color: Black
Plug/Mating Plug Diameter: 2.5mm ID, 5.5mm OD
Mounting Type: Through Hole, Right Angle


Specifications

rating: 16 Vdc @ 2.5A

contact resistance: 30m MAX

insulation resistance: 50M MIN @ 100 Vdc

voltage withstand: 250V AC RMS for 1 minute

center pin diameter: 2.5 mm

input hole diameter: 6.5 mm

flammability: UL94V-0 rated

life: 5,000 cycles

Description

The PJ-202B is designed as one kind of center pin diameter device that has some points of specifications:(1)rating: 16V DC @ 2.5 A;(2)contat resistance: 30 m OHMS max.;(3)insulation resistance: 50 M OHMS min is 100 V DC;(5)voltage withstand: 250V AC R.M.S. for 1 minute;(6)life: 5000 cycles. If you want to know more information such as the electrical characteristics about PJ-202B, please download the datasheet in www.seekic.com or www.chinaicmart.com.

Parameters:

Technical/Catalog Information	PJ-202B
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	2.5mm ID, 5.5mm OD
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Through Hole, Right Angle
Features	-
Color	Black
Termination	Press-Fit
Internal Switch(s)	Single Switch, Normally Closed
Shielding	Unshielded
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 202B PJ202B CP 202B ND CP202BND CP-202B
