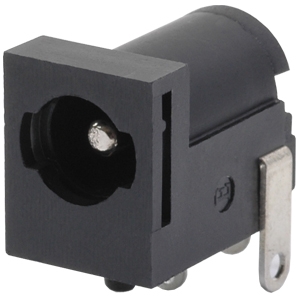

PJ-059AH: CON PWR JCK 2.0 X 5.7MM HIGH CUR

PJ-059AH Data Sheet

US $ .23~.67 / Piece | Get Latest Price

Part Number:: PJ-059AH
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$.67
$.51
$.39
$.31
$.28
$.23

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PJ-002A evaluate
US $.15 - .55 / Piece

CONN POWER JACK 2.1MM
PJ-002AH evaluate
US $.16 - .61 / Piece

CONN PWR JACK 2.1X5.5MM HIGH CUR
PJ-002AH-SMT evaluate
US $.67 - 1.13 / Piece

CONN POWER JACK 2.1X5.5MM HI CUR

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Jack	Gender:	Male
Plug/Mating Plug Diameter:	2.1mm ID, 5.5mm OD	Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed	Forward Voltage Drop :	23 V
Mounting Type:	Through Hole, Right Angle	Termination:	Solder
Shielding:	Unshielded	Features:	-

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Shielding: Unshielded
Features: -
Color: Black
Plug/Mating Plug Diameter: 2.1mm ID, 5.5mm OD
Mounting Type: Through Hole, Right Angle

Specifications

rating: 16 Vdc @ 5A

contact resistance: 50m Ω MAX

insulation resistance: 100M Ω MIN @ 500 Vdc

voltage withstand: 500V AC RMS for 1 minute

center pin diameter: 2.00 mm

flammability: UL94V-O rated

life: 5,000 cycles

Parameters:

Technical/Catalog Information	PJ-059AH
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	2.1mm ID, 5.5mm OD
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Through Hole, Right Angle
Features	Internal Switch
Color	Black
Termination	Solder
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 059AH PJ059AH CP 059AH ND CP059AHND CP-059AH
