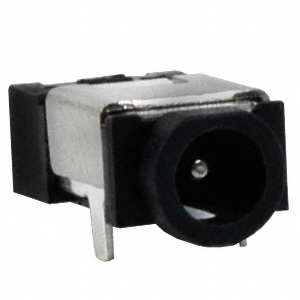

PJ-039-SMT: CONN PWR JACK 0.65X2.6 SMT

PJ-039-SMT Data Sheet

US $ .49~1.04 / Piece | Get Latest Price

Part Number:: PJ-039-SMT
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$1.04
$.81
$.61
$.49

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PJ-002A evaluate
US $.15 - .55 / Piece

CONN POWER JACK 2.1MM
PJ-002AH evaluate
US $.16 - .61 / Piece

CONN PWR JACK 2.1X5.5MM HIGH CUR
PJ-002AH-SMT evaluate
US $.67 - 1.13 / Piece

CONN POWER JACK 2.1X5.5MM HI CUR

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Jack	Gender:	Male
Plug/Mating Plug Diameter:	0.70mm ID, 2.35mm OD (EIAJ-1)	Number of Positions/Contacts:	2 Conductors, 2 Contacts
Internal Switch(s):	Does Not Contain Switch	Forward Voltage Drop :	23 V
Mounting Type:	Surface Mount, Right Angle	Termination:	Solder
Shielding:	Shielded	Features:	-

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Features: -
Color: Black
Plug/Mating Plug Diameter: 0.70mm ID, 2.35mm OD (EIAJ-1)
Number of Positions/Contacts: 2 Conductors, 2 Contacts
Internal Switch(s): Does Not Contain Switch
Shielding: Shielded

Specifications

rating: 16 Vdc @ 1.0A

contact resistance: 50mΩ max

insulation resistance: 100MΩ min: 500V dc

voltage withstand: 500V ac R.M.S. for 1 minute

center pin diameter: 0.65 mm

input hole diameter: 2.60 mm

flammability: UL94V-0 rating

life: 5000 cycles

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	PJ-039-SMT
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	0.70mm ID, 2.35mm OD (EIAJ-1)
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 2 Contacts
Mounting Type	Surface Mount, Right Angle
Features	Shielded
Color	Black
Termination	Solder
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 039 SMT PJ039SMT CP 039PJTR ND CP039PJTRND CP-039PJTR
