PJ-038B

CON PWR JCK 2.5 X 6.4MM PNL MNT

product image

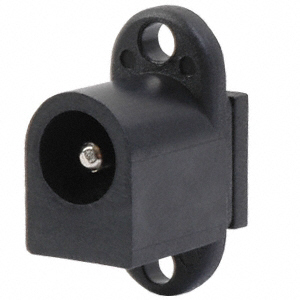

PJ-038B Picture
See larger image
SeekIC No. : 003016867 Detail

PJ-038B: CON PWR JCK 2.5 X 6.4MM PNL MNT

PJ-038B Data Sheet

floor Price/Ceiling Price

US $ .15~.51 / Piece | Get Latest Price
Part Number:
PJ-038B
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $.51
  • $.36
  • $.24
  • $.19
  • $.17
  • $.15
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Jack Gender: Male
Plug/Mating Plug Diameter: 2.5mm ID, 5.5mm OD Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed Forward Voltage Drop : 23 V
Mounting Type: Panel Mount, Flange (2 Hole) Termination: Solder Eyelet(s)
Shielding: Unshielded Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Shielding: Unshielded
Features: -
Color: Black
Plug/Mating Plug Diameter: 2.5mm ID, 5.5mm OD
Termination: Solder Eyelet(s)
Mounting Type: Panel Mount, Flange (2 Hole)


Specifications

  • rating: 16 Vdc @ 2.5A
  • contact resistance: 50m Ω MAX
  • insulation resistance: 100M Ω MIN @ 500 Vdc
  • voltage withstand: 500V AC RMS for 1 minute
  • center pin diameter: 2.50 mm
  • flammability: UL94V-O rated
  • life: 5,000 cycles



    • Parameters:

    Technical/Catalog InformationPJ-038B
    VendorCUI Inc
    CategoryConnectors
    Connector TypeJack
    GenderMale
    Plug/Mating Plug Diameter2.5mm ID, 5.5mm OD
    Signal Lines-
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypePanel Mount, Flange (2 Hole)
    FeaturesInternal Switch
    ColorBlack
    TerminationSolder Eyelet (s)
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names PJ 038B
    PJ038B
    CP 038B ND
    CP038BND
    CP-038B
