PJ-037A

CON PWR JCK 2.0 X 6.5MM W/O SW

product image

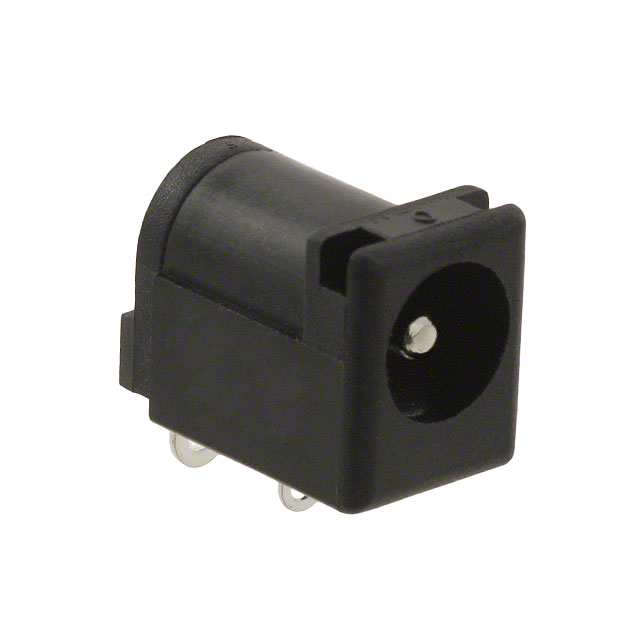

PJ-037A Picture
See larger image
SeekIC No. : 003016858 Detail

PJ-037A: CON PWR JCK 2.0 X 6.5MM W/O SW

PJ-037A Data Sheet

floor Price/Ceiling Price

US $ .15~.55 / Piece | Get Latest Price
Part Number:
PJ-037A
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $.55
  • $.38
  • $.26
  • $.21
  • $.18
  • $.15
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Jack Gender: Male
Plug/Mating Plug Diameter: 2.1mm ID, 5.5mm OD Number of Positions/Contacts: 2 Conductors, 2 Contacts
Internal Switch(s): Does Not Contain Switch Forward Voltage Drop : 23 V
Mounting Type: Through Hole, Right Angle Termination: Solder Eyelet(s)
Shielding: Unshielded Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Shielding: Unshielded
Features: -
Color: Black
Number of Positions/Contacts: 2 Conductors, 2 Contacts
Internal Switch(s): Does Not Contain Switch
Plug/Mating Plug Diameter: 2.1mm ID, 5.5mm OD
Mounting Type: Through Hole, Right Angle
Termination: Solder Eyelet(s)


Specifications

  • rating: 16 Vdc @ 2.5A
  • contact resistance: 50m Ω MAX
  • insulation resistance: 100M Ω MIN @ 500 Vdc
  • voltage withstand: 500V AC RMS for 1 minute
  • center pin diameter: 2.00 mm
  • flammability: UL94V-O rated
  • life: 5,000 cycles



    • Parameters:

    Technical/Catalog InformationPJ-037A
    VendorCUI Inc
    CategoryConnectors
    Connector TypeJack
    GenderMale
    Plug/Mating Plug Diameter2.1mm ID, 5.5mm OD
    Signal Lines-
    Number of Positions/Contacts2 Conductors, 2 Contacts
    Mounting TypeThrough Hole, Right Angle
    Features-
    ColorBlack
    TerminationSolder Eyelet(s)
    Internal Switch(s)Does Not Contain Switch
    ShieldingUnshielded
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names PJ 037A
    PJ037A
    CP 037A ND
    CP037AND
    CP-037A
