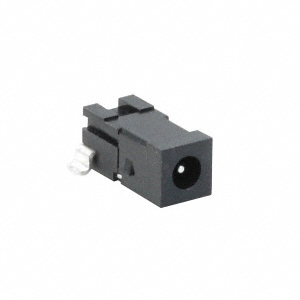

PJ-031H-SMT

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Shielding: Unshielded
Features: -
Color: Black
Plug/Mating Plug Diameter: 0.70mm ID, 2.35mm OD (EIAJ-1)


Specifications

rating: 16 Vdc @ 2.5A

contact resistance: 50mΩ max

insulation resistance: 100MΩ min: 500V dc

voltage withstand: 500V ac R.M.S. for 1 minute

center pin diameter: 0.65 mm

input hole diameter: 2.80 mm

flammability: UL94V-0 rating

life: 5000 cycles

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	PJ-031H-SMT
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	0.70mm ID, 2.35mm OD (EIAJ-1)
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Surface Mount, Right Angle
Features	-
Color	Black
Termination	Solder
Internal Switch(s)	Single Switch, Normally Closed
Shielding	Unshielded
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 031H SMT PJ031HSMT CP 031HPJTR ND CP031HPJTRND CP-031HPJTR
