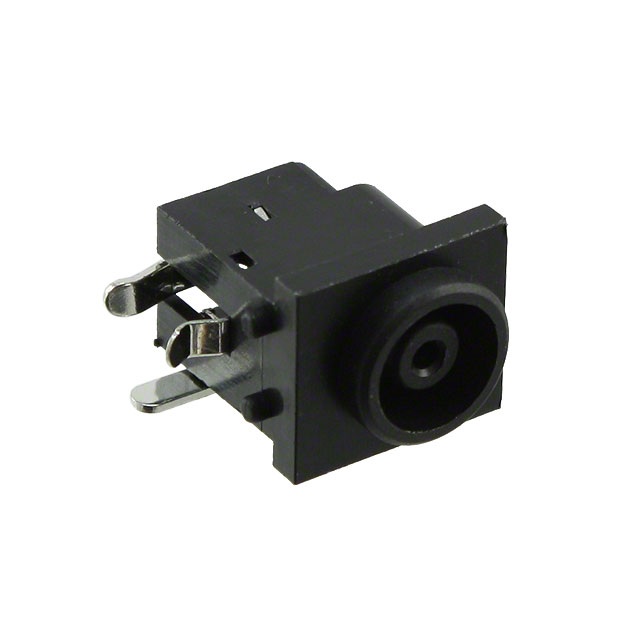

PJ-025

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Shielding: Unshielded
Color: Black
Mounting Type: Through Hole, Right Angle
Features: Board Guide
Plug/Mating Plug Diameter: 1.4mm ID, 4.3mm ID, 6.5mm OD (EIAJ-5)


Specifications

rating: 24 Vdc @ 3A

contact resistance: 30mΩ Max

insulation resistance: 100MΩ MIN @ 500V DC

voltage withstand: 500V AC RMS for 1 minute

inner hole diameter: 1.4 mm

outer hole diameter: 7.0 mm

flammability: UL94V-0

life: 5,000 cycles

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	PJ-025
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	1.4mm ID, 4.3mm ID, 6.5mm OD (EIAJ-5)
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Through Hole, Right Angle
Features	Board Guide
Color	Black
Termination	Press-Fit
Internal Switch(s)	Single Switch, Normally Closed
Shielding	Unshielded
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 025 PJ025 CP 025 ND CP025ND CP-025
