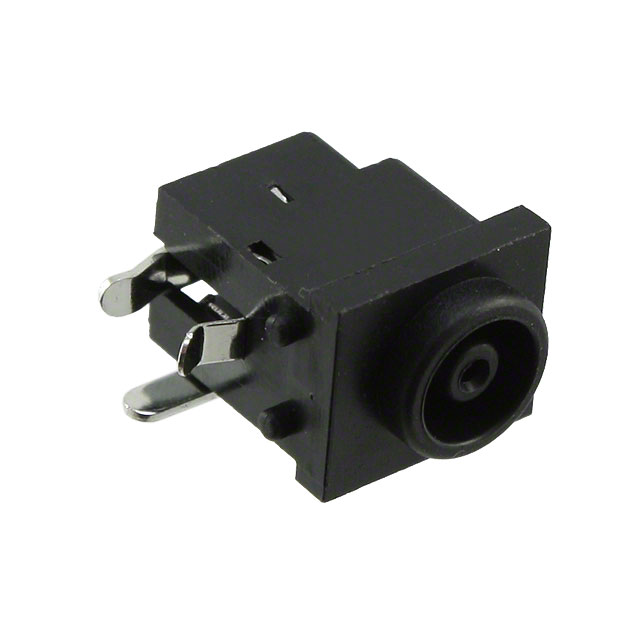

PJ-019: CONN DC POWER JACK 1.1X3.0X5.9

PJ-019 Data Sheet

US $ .19~.71 / Piece | Get Latest Price

Part Number:: PJ-019
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$.71
$.5
$.33
$.27
$.24
$.19

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PJ-002A evaluate
US $.15 - .55 / Piece

CONN POWER JACK 2.1MM
PJ-002AH evaluate
US $.16 - .61 / Piece

CONN PWR JACK 2.1X5.5MM HIGH CUR
PJ-002AH-SMT evaluate
US $.67 - 1.13 / Piece

CONN POWER JACK 2.1X5.5MM HI CUR

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Jack	Gender:	Female
Plug/Mating Plug Diameter:	1.0mm ID, 3.3mm ID, 5.5mm OD (EIAJ-4)	Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed	Forward Voltage Drop :	23 V
Mounting Type:	Through Hole, Right Angle	Termination:	Solder
Shielding:	Unshielded	Features:	-

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Shielding: Unshielded
Features: -
Color: Black
Mounting Type: Through Hole, Right Angle
Gender: Female
Plug/Mating Plug Diameter: 1.0mm ID, 3.3mm ID, 5.5mm OD (EIAJ-4)

Specifications

rating: 24 Vdc @ 3A

contact resistance: 30mΩ Max

insulation resistance: 50MΩ MIN @ 500V DC

voltage withstand: 500V AC RMS for 1 minute

inner hole diameter: 1.10 mm

outer hole diameter: 5.90 mm

life: 5,000 cycles

Parameters:

Technical/Catalog Information	PJ-019
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	1.0mm ID, 3.3mm ID, 5.5mm OD (EIAJ-4)
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Through Hole, Right Angle
Features	Internal Switch
Color	Black
Termination	Press-Fit
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 019 PJ019 CP 019 ND CP019ND CP-019
