PJ-018H-SMT

CONN PWR JACK 1.65X4.4MM SMT

product image

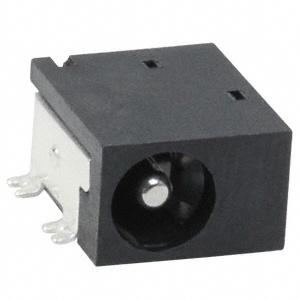

PJ-018H-SMT Picture
See larger image
SeekIC No. : 003016777 Detail

PJ-018H-SMT: CONN PWR JACK 1.65X4.4MM SMT

PJ-018H-SMT Data Sheet

floor Price/Ceiling Price

US $ .46~.78 / Piece | Get Latest Price
Part Number:
PJ-018H-SMT
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • Unit Price
  • $.78
  • $.61
  • $.46
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Jack Gender: Male
Plug/Mating Plug Diameter: 1.7mm ID, 4mm OD (EIAJ-2) Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed Forward Voltage Drop : 23 V
Mounting Type: Surface Mount, Right Angle Termination: Solder
Shielding: Unshielded Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Shielding: Unshielded
Features: -
Color: Black
Plug/Mating Plug Diameter: 1.7mm ID, 4mm OD (EIAJ-2)


Specifications

  • rating: 16 Vdc @ 5.0A
  • contact resistance: 50mΩ max
  • insulation resistance: 100MΩ min: 500V dc
  • voltage withstand: 500V ac R.M.S. for 1 minute
  • center pin diameter: 1.65 mm
  • input hole diameter: 4.40 mm
  • flammability: UL94V-0 rating
  • life: 5000 cycles
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationPJ-018H-SMT
    VendorCUI Inc
    CategoryConnectors
    Connector TypeJack
    GenderMale
    Plug/Mating Plug Diameter1.7mm ID, 4mm OD (EIAJ-2)
    Signal Lines-
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypeSurface Mount, Right Angle
    Features-
    ColorBlack
    TerminationSolder
    Internal Switch(s)Single Switch, Normally Closed
    ShieldingUnshielded
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names PJ 018H SMT
    PJ018HSMT
    CP 018HPJTR ND
    CP018HPJTRND
    CP-018HPJTR
