PJ-017CH

CON PWR JCK 1.0 X 3.8MM HIGH CUR

product image

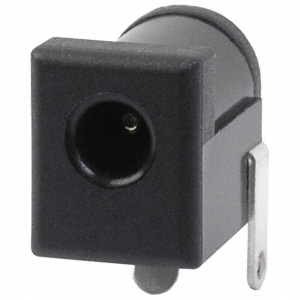

PJ-017CH Picture
See larger image
SeekIC No. : 003016772 Detail

PJ-017CH: CON PWR JCK 1.0 X 3.8MM HIGH CUR

PJ-017CH Data Sheet

floor Price/Ceiling Price

US $ .14~.14 / Piece | Get Latest Price
Part Number:
PJ-017CH
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~3000
  • Unit Price
  • $.14
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Jack Gender: Male
Plug/Mating Plug Diameter: 1.1mm ID, 3.5mm OD Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed Forward Voltage Drop : 23 V
Mounting Type: Through Hole, Right Angle Termination: Solder
Shielding: Unshielded Features: Board Guide

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Shielding: Unshielded
Color: Black
Plug/Mating Plug Diameter: 1.1mm ID, 3.5mm OD
Mounting Type: Through Hole, Right Angle
Features: Board Guide


Specifications

  • rating: 16 Vdc @ 3.5A
  • contact resistance: 50m Ω MAX
  • insulation resistance: 100M Ω MIN @ 500 Vdc
  • voltage withstand: 500V AC RMS for 1 minute
  • center pin diameter: 1.00 mm
  • flammability: UL94V-O rated
  • life: 5,000 cycles



    • Parameters:

    Technical/Catalog InformationPJ-017CH
    VendorCUI Inc
    CategoryConnectors
    Connector TypeJack
    GenderMale
    Plug/Mating Plug Diameter1.1mm ID, 3.5mm OD
    Signal Lines-
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypeThrough Hole, Right Angle
    FeaturesBoard Guide, Internal Switch
    ColorBlack
    TerminationPress-Fit
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names PJ 017CH
    PJ017CH
    CP 017CH ND
    CP017CHND
    CP-017CH
