PJ-016

CONN PWR JACK 4.4MM X 1.65MM PCB

product image

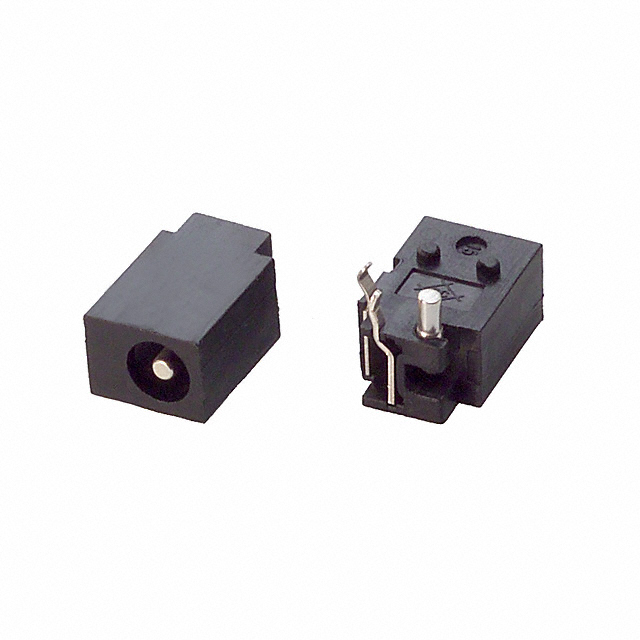

PJ-016 Picture
See larger image
SeekIC No. : 003016791 Detail

PJ-016: CONN PWR JACK 4.4MM X 1.65MM PCB

PJ-016 Data Sheet

floor Price/Ceiling Price

US $ .26~.73 / Piece | Get Latest Price
Part Number:
PJ-016
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $.73
  • $.57
  • $.43
  • $.35
  • $.31
  • $.26
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Jack Gender: Male
Plug/Mating Plug Diameter: 1.7mm ID, 4mm OD (EIAJ-2) Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed Forward Voltage Drop : 23 V
Mounting Type: Through Hole, Right Angle Termination: Solder
Shielding: Unshielded Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Shielding: Unshielded
Features: -
Color: Black
Plug/Mating Plug Diameter: 1.7mm ID, 4mm OD (EIAJ-2)
Mounting Type: Through Hole, Right Angle


Specifications

  • rating: 12 Vdc @ 1A
  • contact resistance: 30mΩ MAX
  • insulation resistance: 100MΩ MIN @ 500 Vdc
  • voltage withstand: 500V AC for 1 minute
  • flammability: UL94V-0 rated
  • life: 5,000 cycles
  • input hole diameter: 4.4 mm
  • center pin diameter: 1.65 mm
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationPJ-016
    VendorCUI Inc
    CategoryConnectors
    Connector TypeJack
    GenderMale
    Plug/Mating Plug Diameter1.7mm ID, 4mm OD (EIAJ-2)
    Signal Lines-
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypeThrough Hole, Right Angle
    Features-
    ColorBlack
    TerminationSolder
    Internal Switch(s)Single Switch, Normally Closed
    ShieldingUnshielded
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names PJ 016
    PJ016
    CP 016 ND
    CP016ND
    CP-016
