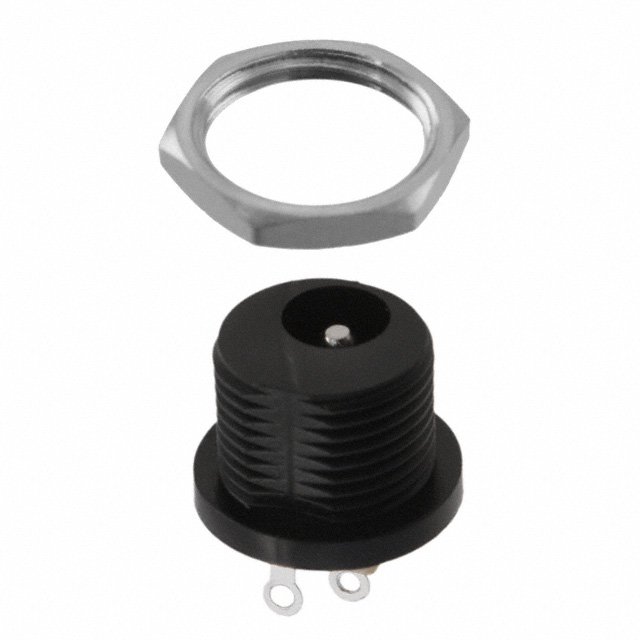

PJ-011B: PWR JCK 2.5X6.0MM PNL MNT W/NUT

PJ-011B Data Sheet

US $ .46~1.15 / Piece | Get Latest Price

Part Number:: PJ-011B
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$1.15
$.96
$.71
$.57
$.51
$.46

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PJ-002A evaluate
US $.15 - .55 / Piece

CONN POWER JACK 2.1MM
PJ-002AH evaluate
US $.16 - .61 / Piece

CONN PWR JACK 2.1X5.5MM HIGH CUR
PJ-002AH-SMT evaluate
US $.67 - 1.13 / Piece

CONN POWER JACK 2.1X5.5MM HI CUR

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Jack	Gender:	Male
Plug/Mating Plug Diameter:	2.5mm ID, 5.5mm OD	Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed	Forward Voltage Drop :	23 V
Mounting Type:	Panel Mount, Bulkhead - Front Side Nut	Termination:	Solder Eyelet(s)
Shielding:	Unshielded	Features:	Thread Lock

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Shielding: Unshielded
Color: Black
Plug/Mating Plug Diameter: 2.5mm ID, 5.5mm OD
Termination: Solder Eyelet(s)
Mounting Type: Panel Mount, Bulkhead - Front Side Nut
Features: Thread Lock

Specifications

rating: 12 Vdc @ 2A

contact resistance: 30mΩ MAX

insulation resistance: 100MΩ MIN @ 500 Vdc

voltage withstand: 500V DC for 1 minute

center pin diameter: 2.5 mm

flammability: UL94V-0 rated

life: 5,000 cycles

Parameters:

Technical/Catalog Information	PJ-011B
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	2.5mm ID, 5.5mm OD
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Panel Mount, Bulkhead - Front Side Nut
Features	Thread Lock
Color	Black
Termination	Solder Eyelet(s)
Internal Switch(s)	Single Switch, Normally Closed
Shielding	Unshielded
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 011B PJ011B CP 011B ND CP011BND CP-011B
