PJ-005A

CONN 2.1MM JACK W/HARD PNL MNT

product image

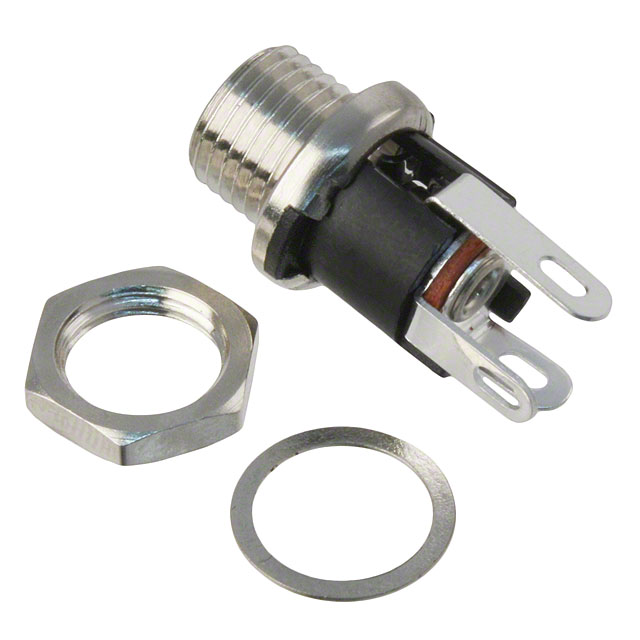

PJ-005A Picture
See larger image
SeekIC No. : 003016919 Detail

PJ-005A: CONN 2.1MM JACK W/HARD PNL MNT

PJ-005A Data Sheet

floor Price/Ceiling Price

US $ .58~1.46 / Piece | Get Latest Price
Part Number:
PJ-005A
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.46
  • $1.21
  • $.9
  • $.72
  • $.65
  • $.58
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Jack Gender: Male
Plug/Mating Plug Diameter: 2.1mm ID, 5.5mm OD Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed Forward Voltage Drop : 23 V
Mounting Type: Panel Mount, Bulkhead - Front Side Nut Termination: Solder Eyelet(s)
Shielding: Unshielded Features: Thread Lock

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Shielding: Unshielded
Color: Black
Plug/Mating Plug Diameter: 2.1mm ID, 5.5mm OD
Termination: Solder Eyelet(s)
Mounting Type: Panel Mount, Bulkhead - Front Side Nut
Features: Thread Lock


Specifications

  • rating: 16 Vdc @ 2A
  • contact resistance: 30mΩ MAX
  • insulation resistance: 100MΩ MIN @ 500 Vdc
  • voltage withstand: 500V DC for 1 minute
  • center pin diameter: 2.0 mm
  • input hole diameter: 5.8 mm
  • flammability: UL94V-0 rated
  • life: 5,000 cycles
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationPJ-005A
    VendorCUI Inc
    CategoryConnectors
    Connector TypeJack
    GenderMale
    Plug/Mating Plug Diameter2.1mm ID, 5.5mm OD
    Signal Lines-
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypePanel Mount, Bulkhead - Front Side Nut
    FeaturesThread Lock
    ColorBlack
    TerminationSolder Eyelet(s)
    Internal Switch(s)Single Switch, Normally Closed
    ShieldingUnshielded
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names PJ 005A
    PJ005A
    CP 5 ND
    CP5ND
    CP-5
