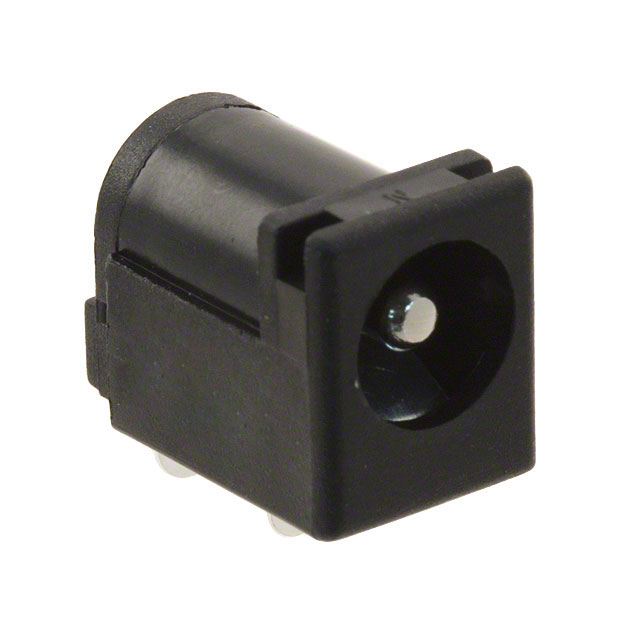

PJ-002BH

Series: -
Manufacturer: CUI Inc
Connector Type: Jack
Gender: Male
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Shielding: Unshielded
Features: -
Color: Black
Plug/Mating Plug Diameter: 2.5mm ID, 5.5mm OD
Mounting Type: Through Hole, Right Angle
Termination: Solder Eyelet(s)


Specifications

rating: 24 Vdc @ 5A

contact resistance: 30mΩ Max

insulation resistance: 50MΩ MIN @ 100V DC

voltage withstand: 250V AC RMS for 1 minute

center pin diameter: 2.5 mm

input hole diameter: 6.5 mm

flammability: UL94V-0

life: 5,000 cycles

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	PJ-002BH
Vendor	CUI Inc
Category	Connectors
Connector Type	Jack
Gender	Male
Plug/Mating Plug Diameter	2.5mm ID, 5.5mm OD
Signal Lines	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Through Hole, Right Angle
Features	-
Color	Black
Termination	Solder Eyelet(s)
Internal Switch(s)	Single Switch, Normally Closed
Shielding	Unshielded
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PJ 002BH PJ002BH CP 002BH ND CP002BHND CP-002BH
