PIP212-12M

Features: ·Input conversion range from 3.3 V to 16 V·Output voltages from 0.8 V to 6 V·Capable of up to 30 A maximum output current·Operating frequency up to 1 MHz·Peak system efficiency > 90 % at 500 kHz·Automatic Dead-time Reduction (ADR) for maximum efficiency·Internal thermal shutdown·Auxil...

product image

PIP212-12M Picture
See larger image
SeekIC No. : 004462644 Detail

PIP212-12M: Features: ·Input conversion range from 3.3 V to 16 V·Output voltages from 0.8 V to 6 V·Capable of up to 30 A maximum output current·Operating frequency up to 1 MHz·Peak system efficiency > 90 % a...

PIP212-12M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PIP212-12M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Input conversion range from 3.3 V to 16 V
·Output voltages from 0.8 V to 6 V
·Capable of up to 30 A maximum output current
·Operating frequency up to 1 MHz
·Peak system efficiency > 90 % at 500 kHz
·Automatic Dead-time Reduction (ADR) for maximum efficiency
·Internal thermal shutdown
·Auxiliary 5 V output
·Power ready output flag
·Power sequencing functions
·Fault flag for lost phase detection
·Internal 6.5 V regulator for efficient gate drive
·Compatible with single and multi-phase PWM controllers
·Internal boost switch for high efficiency and low noise
·Low-profile, surface-mounted package (8 mm ´ 8 mm ´ 0.85 mm)


Application

·High-current DC-to-DC point-of-load converters
·Small form-factor voltage regulator modules
·Microprocessor and memory voltage regulators
·Intel® compatible VRM (VRM9 and VRM10)
·Intel® Driver MOS (DrMOS) compatible


Pinout

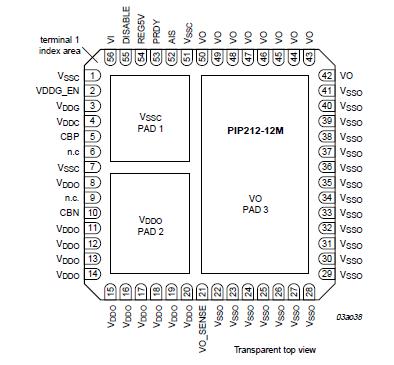

Connection Diagram


Description

The PIP212M-12M is a fully optimized powertrain for high current high frequency synchronous buck DC-to-DC applications. The PIP212M-12M replaces two power MOSFETs, a Schottky diode and a driver IC, resulting in a significant increase in power density. The integrated solution allows for optimization of individual components and greatly reduces the parasitics associated with conventional discrete solutions, resulting in higher system efficiencies at higher frequency operation.
