PI5L100

Above which useful life may be impaired. For user guidelines, not tested.

Storage Temperature ........................................................ 65°C to +150°C
Ambient Temperature with Power Applied ............................ 0°C to +70°C
Supply Voltage to Ground Potential ................................... 0.5V to +7.0V
DC Input Voltage ................................................................ 0.5V to +7.0V
DC Output Current ......................................................................... 120 mA
Power Dissipation .............................................................................. 0.5W

Note:Stresses greater than those listed under MAXIMUM RATINGSmay cause permanent damage to the device. This is atress rating only and functional operation of the device at theseor any other conditions above those indicated in the operationalsections of this specification is not implied. Exposure toabsolute maximum rating conditions for extended periods may ffect reliability.

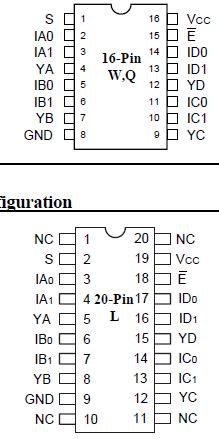

Pericom Semiconductor's PI5L100 is a Quad 2:1 multiplexer/demultiplexer LanSwitch with three-state outputs. This device canbe used for switching between various standards, such as 10 Base-T, 100 Base-T, 100VG-AnyLAN or Token Ring. Generally, this partcan be used to replace mechanical relays in low voltage LANapplications that have phsical layer, unshielded twisted pair media(UTP) with either CAT 3 or CAT 5 grade cable.

To reduce insertion loss, PI5L100 is powered by a 6.2V Zener voltage.
