Product Details

Description



Features:

• Near-zero propagation delay
• 25W series resistor termination
• 5W switches connect inputs to outputs
• Direct bus connection when switches are ON
• Ultra-low quiescent power (0.2 A typical)
Ideally suited for notebook applications
• Pin compatible with QS34X245
• Industrial operating temperature: 40°C to +85°C
• Packages available:
80-pin 150 mil wide plastic BQSOP (B)

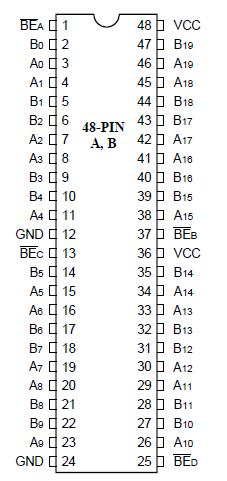

Pinout






Specifications

Storage Temperature ....................................................... 65°C to +150°C
Ambient Temperature with Power Applied .......................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) ....... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only).... 0.5V to +7.0V
DC Input Voltage .................................................................. 0.5V to +7.0V
DC Output Current ............................................................................ 120 mA
Power Dissipation ................................................................................. 0.5W
Note
Stresses greater than those listed under MAXIMUM
RATINGS may cause permanent damage to the
device. This is a stress rating only and functional
operation of the device at these or any other conditions
above those indicated in the operational
sections of this specification is not implied. Exposure
to absolute maximum rating conditions for extended
periods may affect reliability.




Description

Pericom Semiconductor's PI5C series of logic circuits are produced in the Company's advanced 0.6 micron CMOS technology.The PI5C34X2245 is a 32-bit, 2-port bus switch. Four enable signals (BEn) turn the switches on. The PI5C34X2245 bus switch creates no additional propagational delay or additional ground bounce noise. The device has a built-in 25W resistor to reduce noise resulting from reflection, thus eliminating the need for an external terminating resistor.
