PI5C3390

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature .......................................................... 65°C to +150°C
Ambient Temperature with Power Applied .......................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) . 0.5V to +7.0V
DC Input Voltage ................................................................... 0.5V to +7.0V
DC Output Current ............................................................................. 120 mA
Power Dissipation ................................................................................... 0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

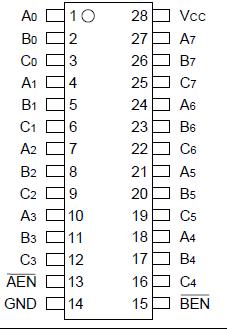

Pericom Semiconductor's PI5C3390 and PI5C32390 are 16-to-8 multiplexer/demultiplexer bus switches with a low On-Resistance allowing inputs to be connected directly to outputs. The two enable inputs connect each of eight I/O to the common I/O pin. This multiplexer function can be used to select and route logic signals to form crossbar switches, isolate bus capacitance, or provide a zero delay switch connection. The bus switch creates no additional ground bounce noise or additional propagation delay. The PI5C3390 and PI5C32390 are  designed with an internal 25-ohm resistor reducing noise reflection in high-speed applications.
